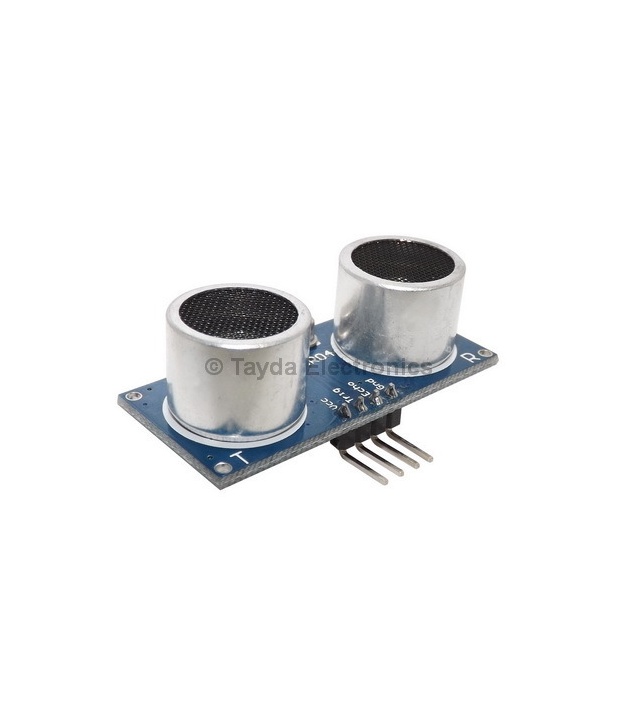

HC-SR04 Ultrasonic Range Sensor
$0.99

HC-SR04 Ultrasonic Range Sensor

Available Qty: 39888
SKU: A-2862
CYTRON
5V Input Voltage
Compatible with Arduino
2cm to 200cm sensing ability
$0.99
Have questions? Expert help just one click away Contact Us

Product Description


Manufacturer Part No: HC-SR04

RoHS: Yes
Datasheet: Click Here

This is a simple ultrasonic sensor. This capable little sensor helps your robots, doors, tables, dogs, cars, boats, bicycles, or just about anything sense a little bit about the world around it! Watch for people walking, walls, dogs, cats, to make sure the toilet seat is down. Make an alarm for when your garage door opens, there are a myriad of fun things one is able to do with this little Ultrasonic Sensor. It uses a 5V logic with ranging capabilities from approximately 2cm to 200cm.
Pin out from left to right
-> 5V
-> Trigger Input
-> Echo Pulse Ouput
-> Ground.

There is a wiring and coding example available. Click Here

Specifications
Technical Data:
Voltage: 5V
Working Current: 15mA
Resolution: .3cm
Measuring Angle: 30 degrees


More Information

Same Spec Items -
SKU A-2862
Manufacturer CYTRON
MPN HC-SR04
Can be used with A-7206, A-7207
