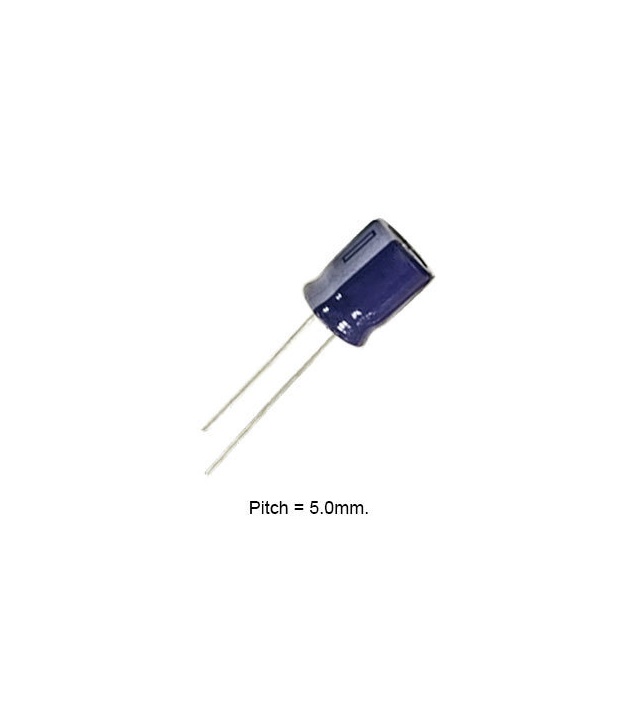

680uF 16V 105C Aluminum Electrolytic Capacitor 10x13mm AISHI
$0.09

680uF 16V 105C Aluminum Electrolytic Capacitor 10x13mm AISHI

Available Qty: 398888
SKU: A-6770
AISHI
Tolerance: ±20 % (120Hz/+20 ° C)
Pin Spacing:5.0±0.5mm
RE Series
Wide Temperature Range
$0.09
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: AISHI
Manufacturer Part No.: ERE1CM681G13B50T
Datasheet: Click Here
RoHS: Yes

Features:
-Wide temperature range: 105℃ 2000 to 4000 hours

Specifications
Capacitance: 680uF
Voltage-Rated: 16V
Tolerance: ±20%
Wide Operating Temperature Range: -40°C to +105°C
Ripple Current (100kHz) (+105°C): 870mArms
Diameter*Length: 10*13mm
Lead Diameter : 0.6 mm
Pin Spacing: 5.0±0.5mm

More Information

Same Spec Items -
SKU A-6770
Manufacturer AISHI
MPN ERE1CM681G13B50T
