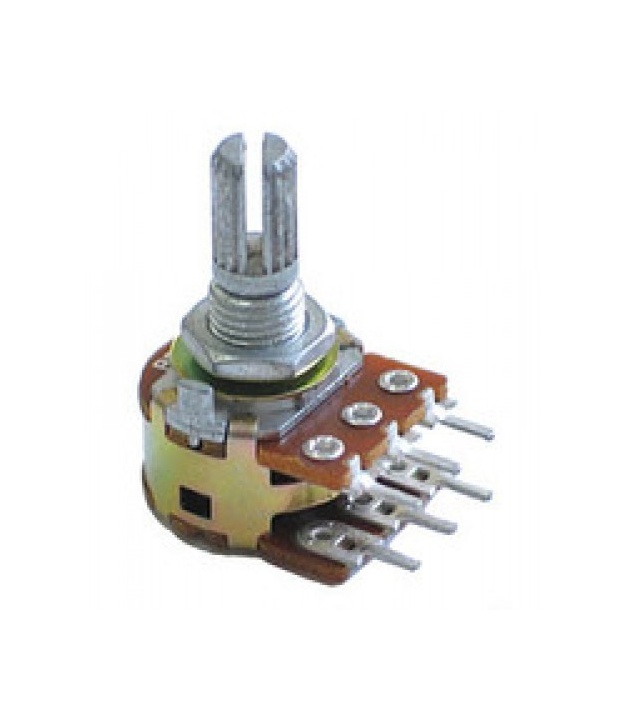

20K OHM Dual MN taper Potentiometer blend-balance CENTER CLICK

SKU: A-3621
ALPHA
ALPHA 17MM
SHAFT DIA: 6.00MM
PCB Mount
T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)
$0.98
This item is currently out of stock.
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16A01F-20-17K-MN20K-CC
Datasheet: Click Here
RoHs: Yes

Specifications
Adjustment Type: Top Adjustment
Power: 0.06W
Resistance: 20K OHM OHMS
Type: Dual MN taper Blend-balance CENTER CLICK
Type MN
Features
Knurled Shaft
Suits Most Standard Knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Base Height: 9mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-3621
Manufacturer ALPHA
MPN RV16A01F-20-17K-MN20K-CC
