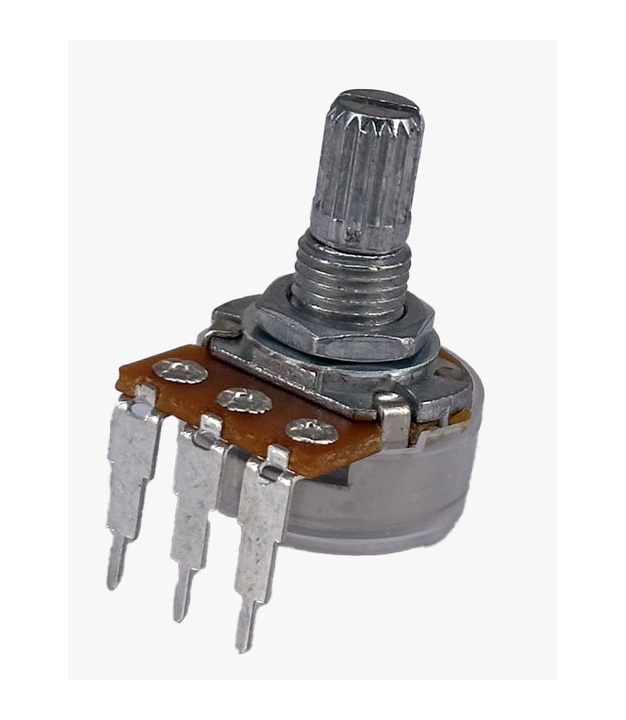

TAYDA 10K OHM Linear Taper Potentiometer Spline Shaft PCB Mount
$0.45

TAYDA 10K OHM Linear Taper Potentiometer Spline Shaft PCB Mount

Available Qty: 292 500 more arriving: Oct 18, 2026
SKU: A-7010
Tayda Electronics
B10K OHM LINEAR
PCB Mount
T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)
WITH DUST SEAL
$0.45
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: Tayda Electronics
Manufacturer Part No: RV16601N0-KA15D6.5-B103-060C
Datasheet: Click Here
RoHS: Yes
With Dust Seal

Specifications
Power: 0.1W
Resistance: 10K OHM OHMS
Type: Linear
Type B
Features
T18 Spline Shaft
PCB Mount
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-7010
Manufacturer Tayda Electronics
MPN RV16601N0-KA15D6.5-B103-060C
