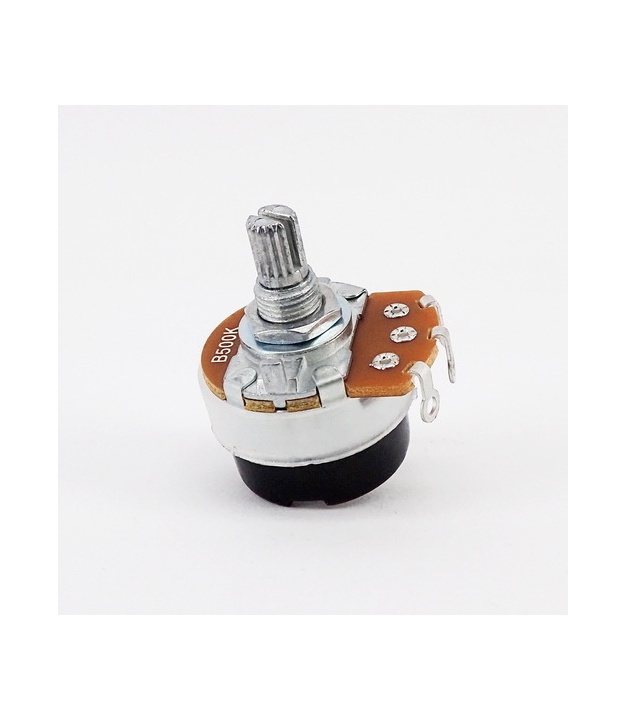

500K OHM Linear Taper Potentiometer On-Off Switch Solder Lugs Knurled Shaft Dia: 6mm
  • 500K OHM Linear Taper Potentiometer On-Off Switch Solder Lugs Knurled Shaft Dia: 6mm
  • 500K OHM Linear Taper Potentiometer On-Off Switch Solder Lugs Knurled Shaft Dia: 6mm

500K OHM Linear Taper Potentiometer On-Off Switch Solder Lugs Knurled Shaft Dia: 6mm

Be the first to review this product

$1.39

Qty Available: 102151

In stock

Quick Overview

ALPHA - Get It Fast - Same Day Shipping

Details

Manufacturer: ALPHA
Manufacturer Part No: RV24A01-10-15K-B500K
Datasheet: Click Here
With Dust Seal

Specifications
Power: 0.5W
Resistance: 500K OHM OHMS
Maximum Working Voltage: 500VAC
Switch Rating Voltage: 12VDC , 1A
Type: Linear
Type B
Features
On-Off Switch
Solder Lugs
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 6mm
Length of thread : 6.5mm
Total Shaft Length(L):15 mm
Mounting Hole: 8mm
Base Diameter: 24mm
Total Rotation Angle: 300 ± 5°

Additional Information

Manufacturer ALPHA
MPN RV24A01-10-15K-B500K
SKU A-4189
