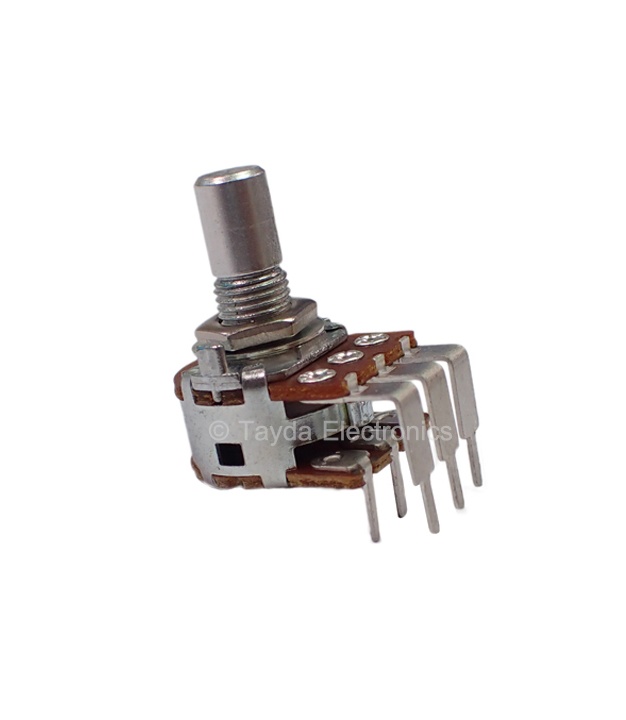

100K OHM Linear Dual Taper Potentiometer PCB Mount Round Shaft Dia: 6mm
  • 100K OHM Linear Dual Taper Potentiometer PCB Mount Round Shaft Dia: 6mm

100K OHM Linear Dual Taper Potentiometer PCB Mount Round Shaft Dia: 6mm

Be the first to review this product

$0.80

Qty Available: 91858

In stock

Quick Overview

ALPHA - Get It Fast - Same Day Shipping

Details

Manufacturer: ALPHA
Manufacturer Part No: RV16A01F-41-15R-B100K

Datasheet: Click Here
RoHS: Yes

Specifications
Adjustment Type: Top Adjustment
Power: 0.125W
Resistance: 100K OHM OHMS
Type: Linear Dual Gang
Type B
Features
Round Shaft
Suits Most Standard Knobs
Shaft Diameter: 6mm

Shaft Length: 15mm(8.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7mm
Base Diameter: 16mm
Base Height: 9mm

Rotation Angle: 300 ± 5°

Additional Information

Manufacturer ALPHA
MPN RV16A01F-41-15R-B100K
SKU A-2003
