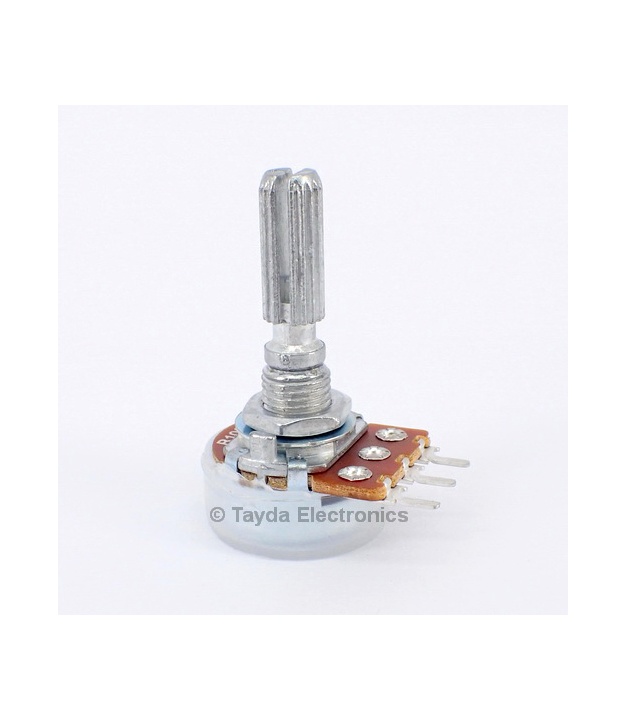

100K OHM W-Taper W100K Tone Control Potentiometer Center Detent PCB Mount Knurled Shaft Dia: 6mm Total Shaft Length:25 mm

SKU: A-4207
ALPHA
ALPHA 16MM
SHAFT DIA: 6MM
TOTAL SHAFT LENGTH:25 MM
W100K OHM W-TAPER | Center Click
PCB Mount
WITH DUST SEAL
$0.60
This item is currently out of stock.
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer ALPHA
Manufacturer Part No. : RV16AF-20-25K-W100K-C-EV
With Dust Seal
Datasheet: Click Here
Center Detent / Click

Specifications
Power 1/8W(0.125W)
Resistance: 100K OHM OHMS , Tolerance: ±20%
Maximum Working Voltage: 150VAC
Type W-Taper
Features
Center Detent
Position of Click: 150±2.5°
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 14mm
Length of thread : 6.5mm
Total Shaft Length(L):25 mm
Mounting Hole: 7mm
Base Diameter: 16.5mm
Total Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-4207
Manufacturer ALPHA
MPN RV16AF-20-25K-W100K-C-EV
