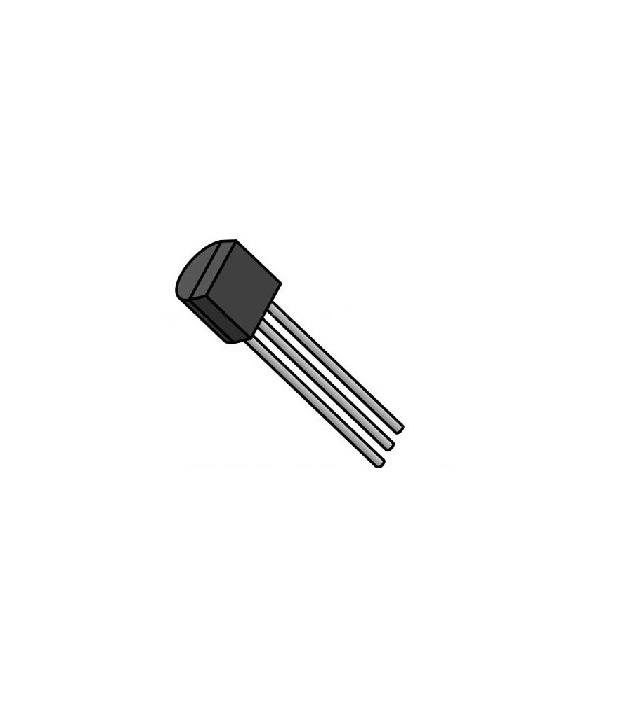

2N5306 NPN Darlington Transistor

SKU: A-429
FAIRCHILD
$0.14
This item is currently out of stock.
Have questions? Expert help just one click away Contact Us

Product Description

An easy to use general NPN darlington Transistor.

The pins of the 2N5306.


Manufacturer: FAIRCHILD
Manufacturer Part No: 2N5306
Package / Case: TO-92
RoHS: Yes
Datasheet: Click Here

Product Category: Transistors Darlington
Configuration: Single
Transistor Polarity: NPN
Collector- Emitter Voltage VCEO Max: 25 V
Emitter- Base Voltage VEBO: 12 V
Collector- Base Voltage VCBO: 25 V
Maximum DC Collector Current: 1.2 A
Maximum Collector Cut-off Current: 0.1 uA
Maximum Operating Temperature: + 150 C
Mounting Style: Through Hole
DC Collector/Base Gain hfe Min: 20000
Minimum Operating Temperature: - 55 C
