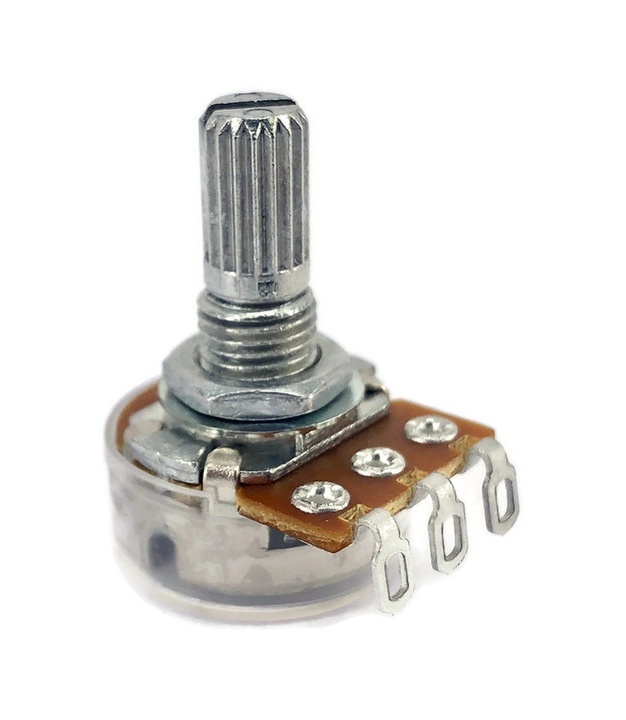

TAYDA 10K OHM Linear Taper Potentiometer with Solder Lugs
SKU
A-5654
$0.39
In stock
Qty Available: 740
Quick Overview
Tayda Electronics - Get It Fast - Same Day Shipping
Details
Manufacturer Part No: RV16108NO-KA17D8.5-B10K-060C
With Dust Seal
Solder Lugs
Datasheet: Click Here
Specifications
Adjustment Type: Top Adjustment
Power: 0.1W
Resistance: 10K OHM OHMS
Type: Linear
Type B
Features
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
Additional Information
| SKU | A-5654 |
|---|---|
| Manufacturer | Tayda Electronics |
| MPN | RV16108NO-KA17D8.5-B10K-060C |
