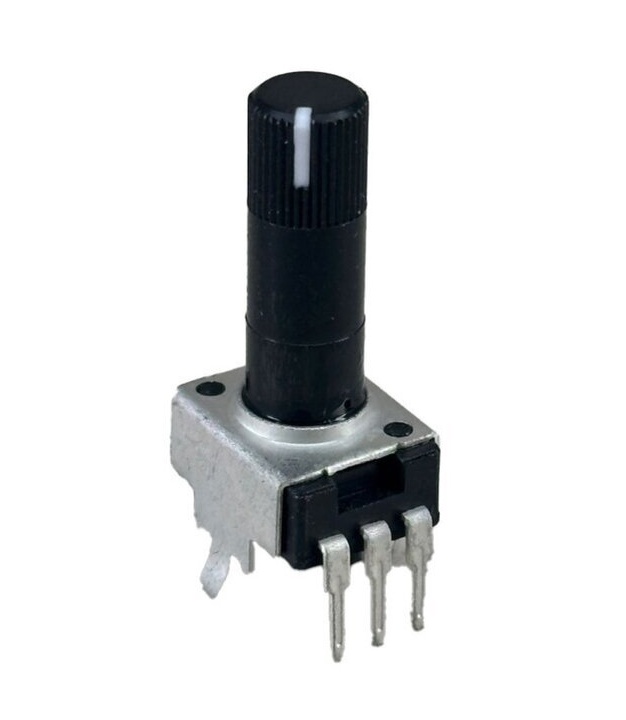

TAYDA 250K OHM Linear Taper Potentiometer Spline Shaft PCB Mount
$0.59

TAYDA 250K OHM Linear Taper Potentiometer Spline Shaft PCB Mount

Available Qty: 400
SKU: A-8378
Tayda Electronics
Total Length: 28.8mm
B250K Linear
T40 Knurled Spline Shaft
SHAFT DIA: 6.00MM with 40Teeth
PCB Mount
$0.59
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: Tayda Electronics
Manufacturer Part No: RV9012NO-PA25B7.0-B250K-000-W3.0
Datasheet: Click Here
RoHs: Yes

Specifications
Adjustment Type: Top Adjustment
Terminals: PCB Mount
Resistance: 250K OHM OHMS
Tolerance: ±20%
Type: Linear
Type B
T40 Knurled Spline Shaft
Rater Power: 0.05W
Shaft Diameter: 6.00mm with 40Teeth
Shaft Length: 10.2mm+7mm
Total Length: 28.8mm
Rotation angle: 280° ± 10°

More Information

Same Spec Items -
SKU A-8378
Manufacturer Tayda Electronics
MPN RV9012NO-PA25B7.0-B250K-000-W3.0
