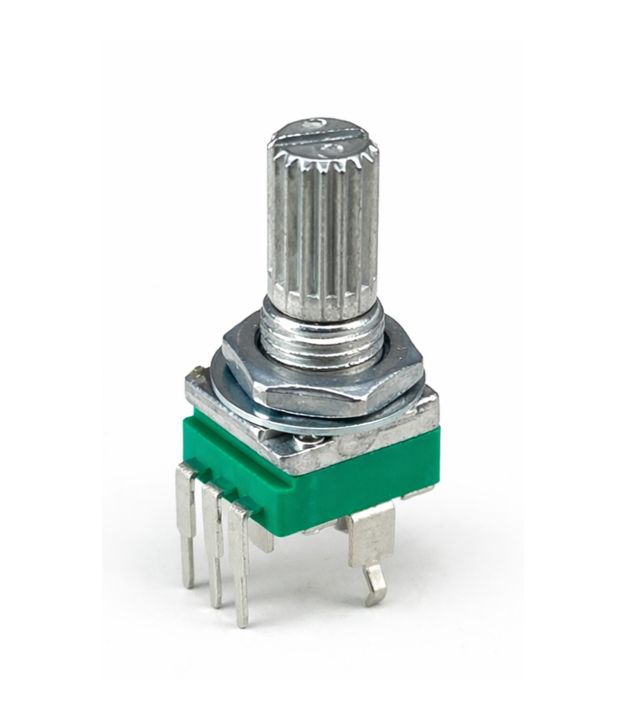

TAYDA 10K OHM Linear Taper Potentiometer Spline Shaft PCB Mount 9mm
$0.62

TAYDA 10K OHM Linear Taper Potentiometer Spline Shaft PCB Mount 9mm

Available Qty: 435
SKU: A-8442
Tayda Electronics
B10K Linear
T18 SPLINE SHAFT 15mm (5mm+10mm)
SHAFT DIA: 6.00MM
PCB Mount
$0.62
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: Tayda Electronics
Manufacturer Part No: RV9312NO-KA15D8.0-B10K-060
Datasheet: Click Here
RoHs: Yes

Specifications
Adjustment Type: Top Adjustment
Terminals: PCB Mount
Resistance: 10K OHM OHMS
Tolerance: ±20%
Type: Linear
Type B
T18 Knurled Spline Shaft
Rater Power: 0.1W
Shaft Diameter: 6.00mm
Shaft Length: 7mm+8mm
Length of thread : 5mm
Mounting Hole: 7.5mm
Base Width: 9.5mm
Rotation angle: 300° ± 10°

More Information

Same Spec Items -
SKU A-8442
Manufacturer Tayda Electronics
MPN RV9312NO-KA15D8.0-B10K-060
