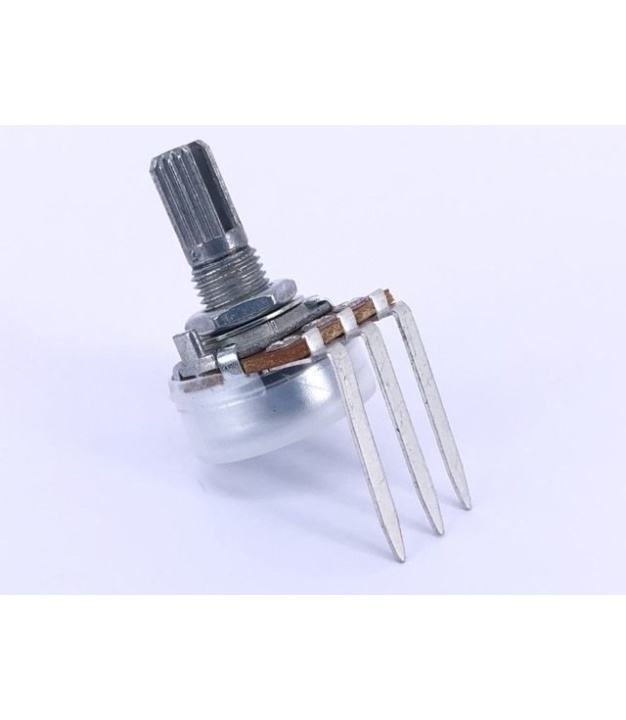

50K OHM W-Taper W50K Tone Control Potentiometer Spline Shaft PCB Mount
SKU
A-5255
$0.59
In stock
Qty Available: 5
Quick Overview
ALPHA - Get It Fast - Same Day Shipping
Details
Manufacturer Part No: RV16AF-4M-17K-W50K-EV
"4M" type pins are specially made for Tayda, they are slightly different than type "42" pins, please refer to product pictures for dimensions.
RoHS: Yes
With Dust Seal
Specifications
Power: 0.06W
Resistance: 50K OHM OHMS
Type: W-Taper
Type W
Features
T18 Spline Shaft
PCB Mount
Suits Most Standard knobs
Pin Length: 20mm
Pin Thickness: 0.5mm
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
Additional Information
SKU | A-5255 |
---|---|
Manufacturer | ALPHA |
MPN | RV16AF-4M-17K-W50K-EV |
