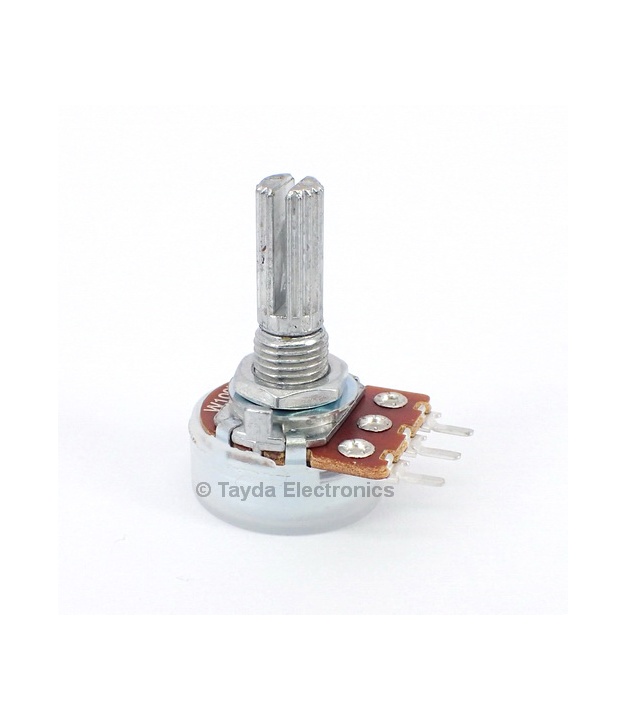

100K OHM W-Taper W100K Tone Control Potentiometer Center Detent PCB Mount Knurled Shaft Dia: 6mm Total Shaft Length:20 mm
  • 100K OHM W-Taper W100K Tone Control Potentiometer Center Detent PCB Mount Knurled Shaft Dia: 6mm Total Shaft Length:20 mm

100K OHM W-Taper W100K Tone Control Potentiometer Center Detent PCB Mount Knurled Shaft Dia: 6mm Total Shaft Length:20 mm

Be the first to review this product

$0.60

Qty Available: 160625

In stock

Quick Overview

ALPHA - Get It Fast - Same Day Shipping

Details

Manufacturer ALPHA
Manufacturer Part No. : RV16AF-20-20K-W100K-C-EV
With Dust Seal
Datasheet: Click Here
Center Detent / Click

Specifications
Power 1/8W(0.125W)

Resistance: 100K OHM OHMS , Tolerance: ±20%
Maximum Working Voltage: 150VAC
Type W-Taper
Features
Center Detent
Position of Click: 150±2.5°
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length:11.5mm
Length of thread : 6.5mm
Total Shaft Length(L):20 mm
Mounting Hole: 7mm
Base Diameter: 16.5mm
Total Rotation Angle: 300 ± 5°

Additional Information

Manufacturer ALPHA
MPN RV16AF-20-20K-W100K-C-EV
SKU A-4204
