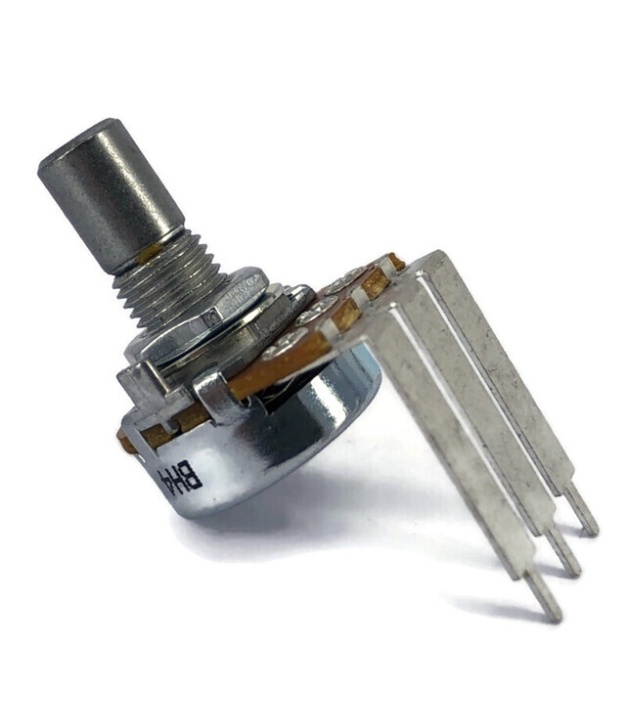

TAYDA 100K OHM W-Taper Taper Potentiometer PCB Mount Round Shaft Dia: 6.35mm
$0.39

TAYDA 100K OHM W-Taper Taper Potentiometer PCB Mount Round Shaft Dia: 6.35mm

Available Qty: 43
SKU: A-8155
Tayda Electronics
Pin Length: 21.55mm
SHAFT DIA: 6.35MM
W100K OHM W-Taper
PCB Mount
ROUND SHAFT 15mm (8.5mm + 6.5mm)
WITH DUST SEAL
$0.39
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: Tayda Electronics
Manufacturer Part No: RV16196NO-OS15A00-W100K-060C
Datasheet: Click Here
RoHS: Yes
With Dust Seal

Specifications
Power: 0.05W
Resistance: 100K OHM OHMS
Type: W-Taper
Type W
Features
Round Shaft
PCB Mount
Suits Most Standard knobs
Pin Length: 21.55mm
Pin Thickness: 0.5mm
Shaft Diameter: 6.35mm

Shaft Length: 15mm(8.5mm+6.5mm)
Length of thread : 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-8155
Manufacturer Tayda Electronics
MPN RV16196NO-OS15A00-W100K-060C
