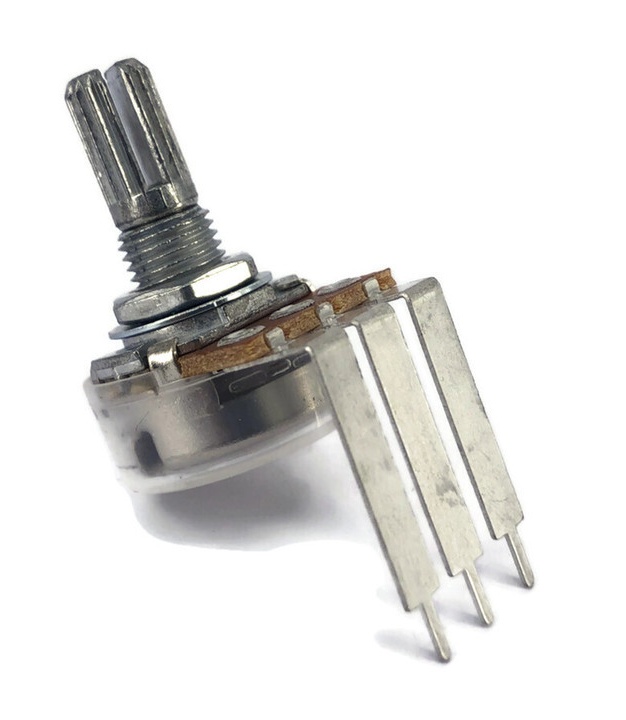

TAYDA 100K OHM Logarithmic Taper Potentiometer Spline Shaft PCB Mount
$0.39

TAYDA 100K OHM Logarithmic Taper Potentiometer Spline Shaft PCB Mount

Available Qty: 1175
SKU: A-5688
Tayda Electronics
A100K OHM Logarithmic
PCB Mount
T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)
WITH DUST SEAL
$0.39
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: Tayda Electronics
Manufacturer Part No: RV16196NO-KA17D8.5-A100K-060C
Datasheet: Click Here
RoHS: Yes
With Dust Seal

Specifications
Power: 0.1W
Resistance: 100K OHM OHMS
Type: Logarithmic
Type A
Features
T18 Spline Shaft
PCB Mount
Suits Most Standard knobs
Pin Length: 21.55mm
Pin Thickness: 0.5mm
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-5688
Manufacturer Tayda Electronics
MPN RV16196NO-KA17D8.5-A100K-060C
