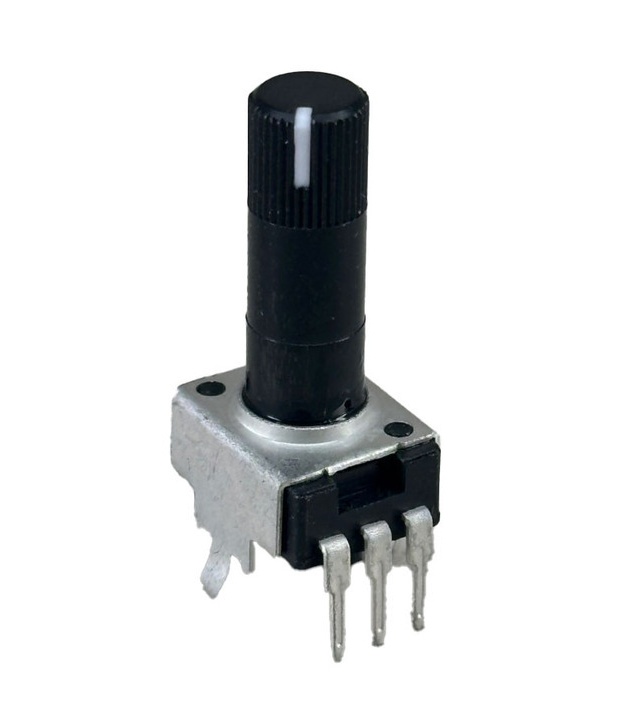

TAYDA 100K OHM Logarithmic Taper Potentiometer Spline Shaft PCB Mount
$0.59

TAYDA 100K OHM Logarithmic Taper Potentiometer Spline Shaft PCB Mount

Available Qty: 639 500 more arriving: Oct 18, 2026
SKU: A-7784
Tayda Electronics
Total Length: 28.8mm
A100K Logarithmic
T40 SPLINE SHAFT
SHAFT DIA: 6.00MM With 40Teeth
PCB Mount
$0.59
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: Tayda Electronics
Manufacturer Part No: RV9012NO-PA25B7.0-A100K-000-W3.0
Datasheet: Click Here
RoHs: Yes

Specifications
Adjustment Type: Top Adjustment
Terminals: PCB Mount
Resistance: 100K OHM OHMS
Tolerance: ±20%
Type: Logarithmic
Type A
T40 Knurled Spline Shaft
Rater Power: 0.025W
Shaft Diameter: 6.00mm with 40Teeth
Shaft Length: 10.2mm+7mm
Total Length: 28.8mm
Rotation angle: 280° ± 10°

More Information

Same Spec Items -
SKU A-7784
Manufacturer Tayda Electronics
MPN RV9012NO-PA25B7.0-A100K-000-W3.0
