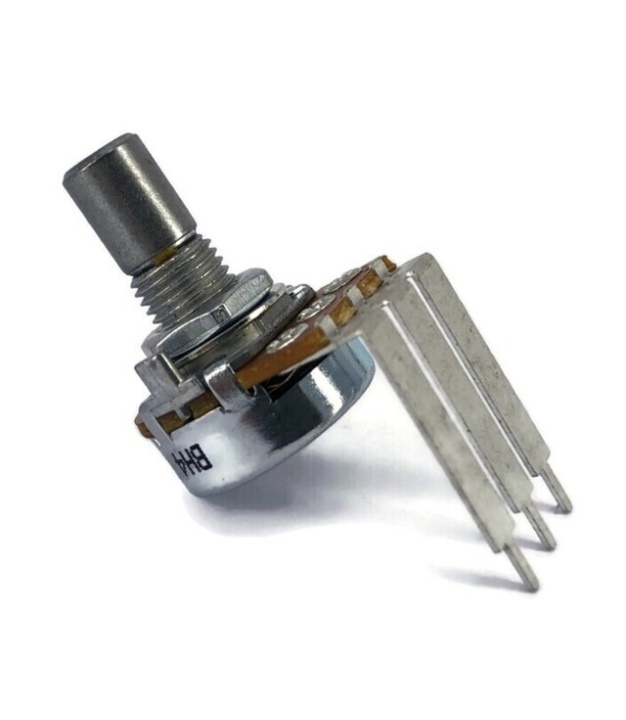

100K OHM Logarithmic Taper Potentiometer PCB Mount Round Shaft Dia: 6.35mm
$0.64

100K OHM Logarithmic Taper Potentiometer PCB Mount Round Shaft Dia: 6.35mm

Available Qty: 618
SKU: A-5067
ALPHA
ALPHA 16MM
SHAFT DIA: 6.35MM
A100K OHM LOGARITHMIC
PCB Mount
ROUND SHAFT 15mm (8.5mm + 6.5mm)
$0.64
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-42-15R1-A100K
"4M" type pins are specially made for Tayda, they are slightly different than type "42" pins, please refer to product pictures for dimensions.
Datasheet: Click Here
RoHS: Yes

Specifications
Power: 0.06W
Resistance: 100K OHM OHMS
Type: Logarithmic
Type A
Features
Round Shaft
PCB Mount
Suits Most Standard knobs
Pin Length: 20mm
Pin Thickness: 0.5mm
Shaft Diameter: 6.35mm

Shaft Length: 15mm(8.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**This product was updated from 4M type pins to 42 type pins on 21 July  2025.
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 21 July  2025.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here
