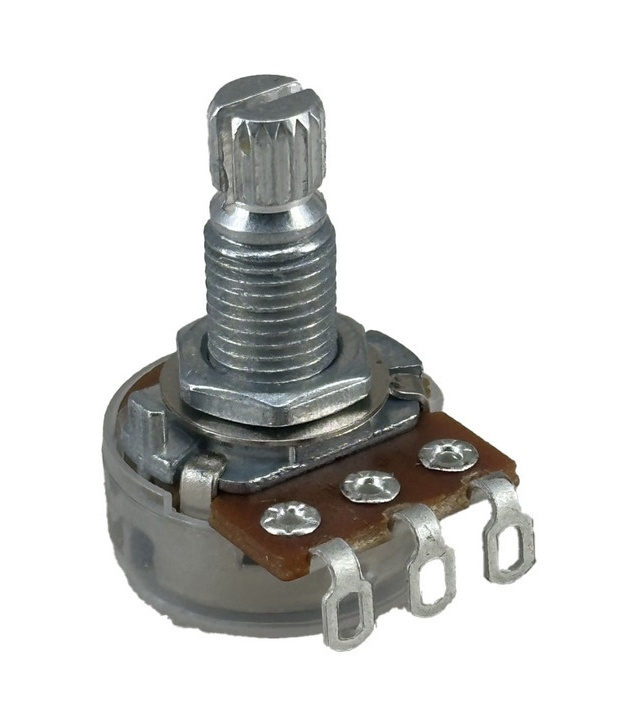

TAYDA 10K OHM Linear Taper Potentiometer Spline Shaft Solder Lugs
$0.59

TAYDA 10K OHM Linear Taper Potentiometer Spline Shaft Solder Lugs

Available Qty: 342
SKU: A-8047
Tayda Electronics
TAYDA
B10K OHM LINEAR
SOLDER LUGS
T18 SPLINE SHAFT 17mm (7mm+10mm)
SHAFT DIA: 6.00MM
WITH DUST SEAL
$0.59
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: Tayda Electronics
Manufacturer Part No: RV16118NO-KQ17A5.0-B10K-000C
Datasheet: Click Here

Specifications
Power: 0.125W
Resistance: 10K OHM OHMS
Type: Linear
Type B
Features
Spline Shaft
Solder Lugs
Suits Most Standard knobs

Shaft Diameter: 6mm
Shaft Length: 17mm(7mm+10mm)
Length of thread : 10mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-8047
Manufacturer Tayda Electronics
MPN RV16118NO-KQ17A5.0-B10K-000C
