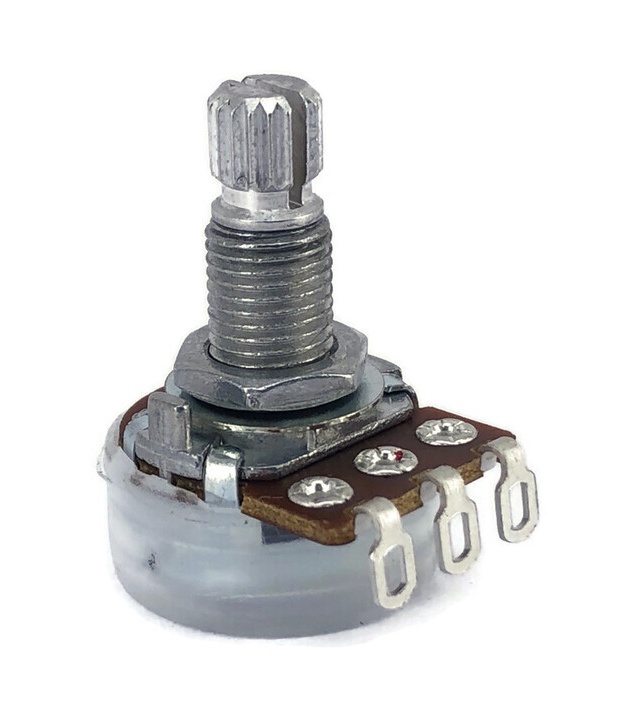

50K OHM Linear Taper Potentiometer Spline Shaft Solder Lugs with Center Detent
$0.66

50K OHM Linear Taper Potentiometer Spline Shaft Solder Lugs with Center Detent

Available Qty: 204 500 more arriving: Oct 18, 2026
SKU: A-8019
TAYDA
B50K OHM Linear
SOLDER LUGS
T18 SPLINE SHAFT 17mm (7mm+10mm)
SHAFT DIA: 6.00MM
WITH DUST SEAL
$0.66
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: TAYDA
Manufacturer Part No: RV16118NO-KQ17A5.0-B50K-100C
Datasheet: Click Here

Specifications
Power: 0.1W
Resistance: 50K OHM OHMS
Type: Linear
Type B
Features
Center Detent
Spline Shaft
Solder Lugs
Suits Most Standard knobs

Shaft Diameter: 6mm
Shaft Length: 17mm(7mm+10mm)
Length of thread : 10mm
Mounting Hole: 7mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-8019
Manufacturer TAYDA
MPN RV16118NO-KQ17A5.0-B50K-100C
