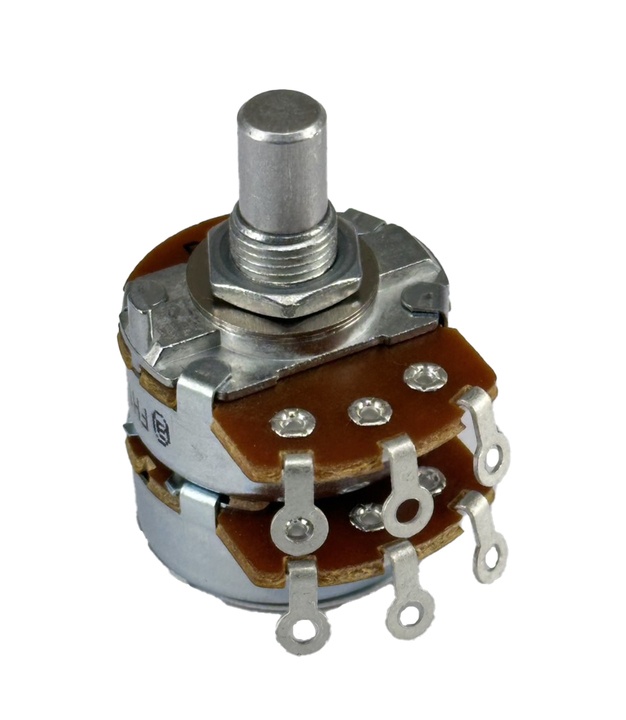

10K OHM Linear Dual Taper Potentiometer Solder lug Round Shaft
$1.79

10K OHM Linear Dual Taper Potentiometer Solder lug Round Shaft

Available Qty: 454
SKU: A-8119
ALPHA TAIWAN
Thread diameter: 8mm
SHAFT DIA: 6.35mm
B10K OHM LINEAR
Solder Lugs
Round SHAFT
$1.79
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: Tayda Electronics
Manufacturer Part No: RV24BF-10-15R1-B10K
Datasheet: Click Here
RoHS: Yes

Specifications
Resistance: 10K OHM OHMS
Type: Linear
Type B
Features
Round Shaft
Dual
Solder Lugs
Shaft Diameter: 6.35mm
Thread diameter: 8mm

Shaft Length: 15mm(6.5mm+8.5mm)
Base Diameter: 24mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-8119
Manufacturer ALPHA TAIWAN
MPN RV24BF-10-15R1-B10K
