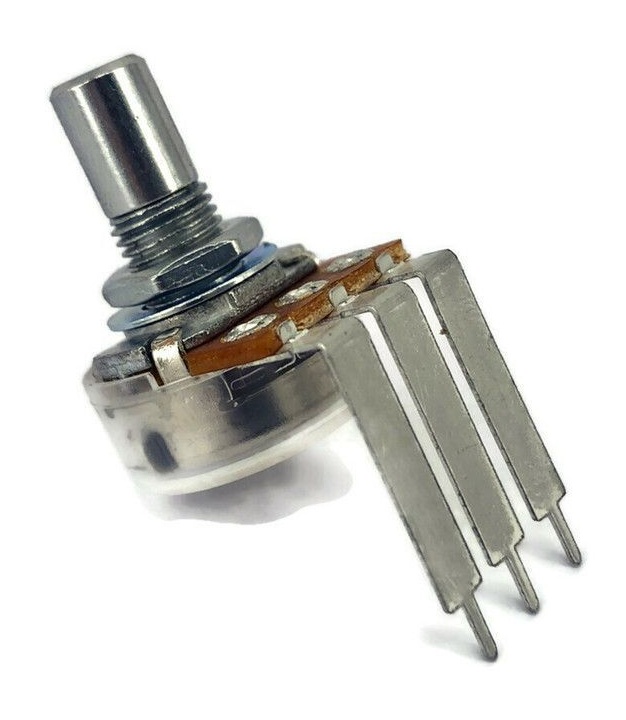

TAYDA 1M OHM ANTI-LOG Taper Potentiometer PCB Mount Round Shaft Dia: 6.35mm

Sale

TAYDA 1M OHM ANTI-LOG Taper Potentiometer PCB Mount Round Shaft Dia: 6.35mm

Available Qty: 68

SKU: A-7496

Tayda Electronics

Pin Length: 21.55mm

SHAFT DIA: 6.35MM

C1M OHM ANTI-LOG

PCB Mount

ROUND SHAFT 15mm (8.5mm + 6.5mm)

WITH DUST SEAL

$0.39

Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: Tayda Electronics
Manufacturer Part No: RV16196NO-OS15A00-C1M-060C
Datasheet: Click Here
RoHS: Yes
With Dust Seal

Specifications
Power: 0.1W
Resistance: 1M OHM OHMS
Type: Anti-Log Reverse
Type C
Features
Round Shaft
PCB Mount
Suits Most Standard knobs
Pin Length: 21.55mm
Pin Thickness: 0.5mm
Shaft Diameter: 6.35mm

Shaft Length: 15mm(8.5mm+6.5mm)
Length of thread : 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items	-
SKU	A-7496
Manufacturer	Tayda Electronics
MPN	RV16196NO-OS15A00-C1M-060C
Can be used with	-
