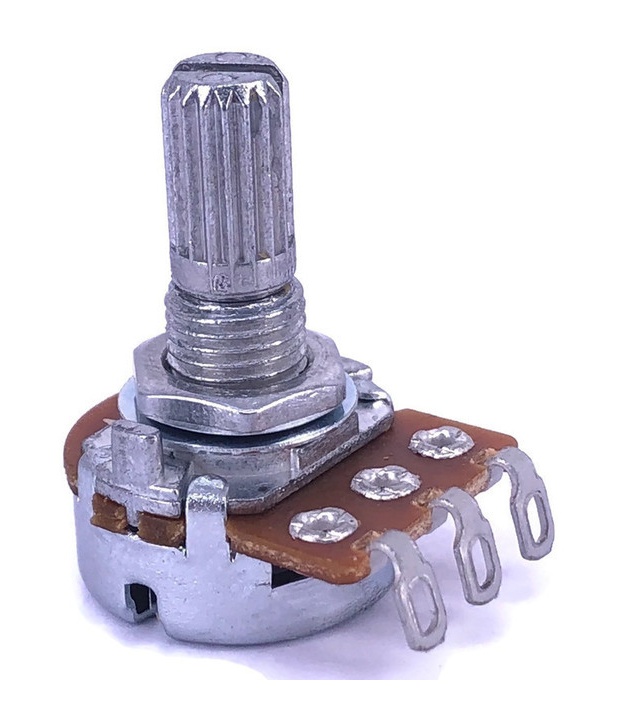

1K OHM Anti-Log Taper Potentiometer Solder Lugs
$0.50

1K OHM Anti-Log Taper Potentiometer Solder Lugs

Available Qty: 292
SKU: A-5668
ALPHA
ALPHA 16MM
C1K OHM ANTI-LOG
SOLDER LUGS
T18 SPLINE SHAFT 17mm (10.5mm+6.5mm)
Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now
Buy Dust Seal Click Here
$0.50
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-10-17K-C1K
Solder Lugs
Datasheet: Click Here

Specifications
Adjustment Type: Top Adjustment
Power: 0.06W
Resistance: 1K OHM OHMS
Type: Anti-Log Reverse
Type C
Features
T18 Spline Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm

Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 29 JULY 2021.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here

More Information

Same Spec Items -
SKU A-5668
Manufacturer ALPHA
MPN RV16AF-10-17K-C1K
Can be used with -
