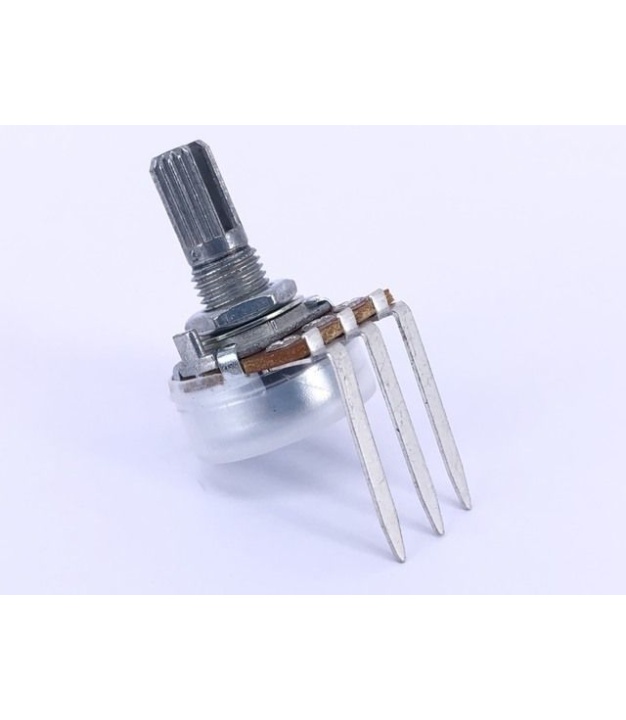

500K OHM Anti-Log Taper Potentiometer Spline Shaft PCB Mount

SKU: A-4966
ALPHA
ALPHA 16MM
C500K OHM Anti-Log Reverse
PCB Mount
T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)
WITH DUST SEAL
$0.59
This item is currently out of stock.
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-4M-17K-C500K
"4M" type pins are specially made for Tayda, they are slightly different than type "42" pins, please refer to product pictures for dimensions.
RoHS: Yes
With Dust Seal

Specifications
Power: 0.06W
Resistance: 500K OHM OHMS
Type: Anti-Log Reverse
Type C
Features
T18 Spline Shaft
PCB Mount
Suits Most Standard knobs
Pin Length: 20mm
Pin Thickness: 0.5mm
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-4966
Manufacturer ALPHA
MPN RV16AF-4M-17K-C500K
