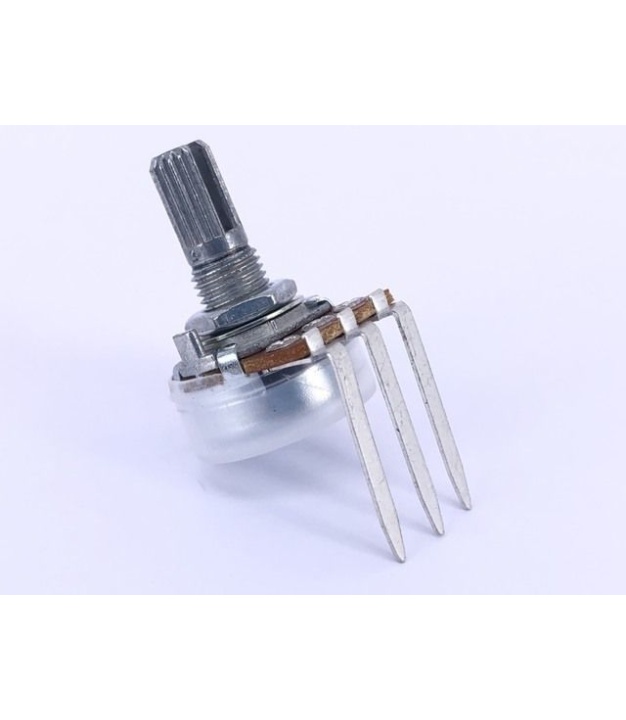

20K OHM Anti-Log Taper Potentiometer Spline Shaft PCB Mount

Out of stock

Quick Overview

ALPHA - Get It Fast - Same Day Shipping


Manufacturer: ALPHA
Manufacturer Part No: RV16AF-4M-17K-C20K

"4M" type pins are specially made for Tayda, they are slightly different than type "42" pins, please refer to product pictures for dimensions.
RoHS: Yes
With Dust Seal

Power: 0.06W
Resistance: 20K OHM OHMS
Type: Anti-Log Reverse
Type C

T18 Spline Shaft
PCB Mount
Suits Most Standard knobs

Pin Length: 20mm
Pin Thickness: 0.5mm

Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7mm
Base Diameter: 16mm

Rotation Angle: 300 ± 5°

Additional Information

More Information
SKU A-4961
Manufacturer ALPHA
MPN RV16AF-4M-17K-C20K
