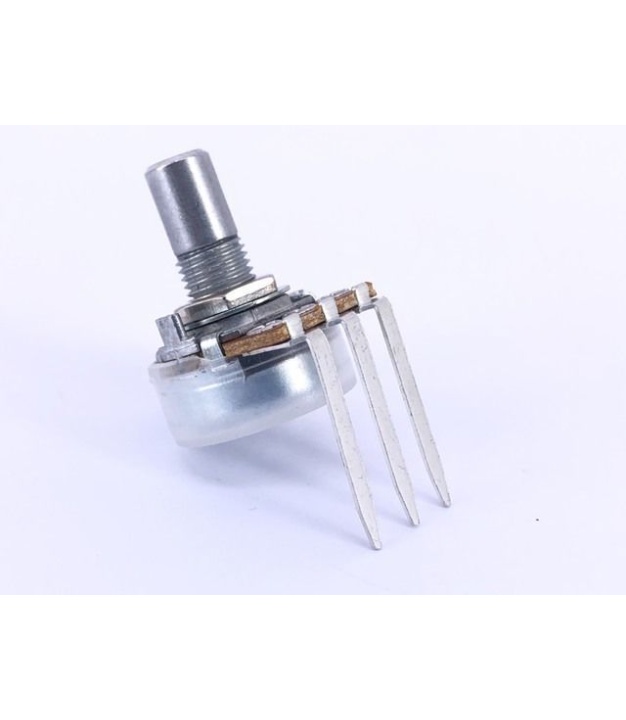

1M OHM Anti-Log Taper Potentiometer PCB Mount Round Shaft Dia: 6.35mm
$0.64

1M OHM Anti-Log Taper Potentiometer PCB Mount Round Shaft Dia: 6.35mm

Available Qty: 74
SKU: A-5090
ALPHA
ALPHA 16MM
SHAFT DIA: 6.35MM
C1M OHM Anti-Log Reverse
PCB Mount
ROUND SHAFT 15mm (8.5mm + 6.5mm)
WITH DUST SEAL
$0.64
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-4M-15R1-C1M
"4M" type pins are specially made for Tayda, they are slightly different than type "42" pins, please refer to product pictures for dimensions.
RoHS: Yes
With Dust Seal

Specifications
Power: 0.06W
Resistance: 1M OHM OHMS
Type: Anti-Log Reverse
Type C
Features
Round Shaft
PCB Mount
Suits Most Standard knobs
Pin Length: 20mm
Pin Thickness: 0.5mm
Shaft Diameter: 6.35mm

Shaft Length: 15mm(8.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-5090
Manufacturer ALPHA
MPN RV16AF-4M-15R1-C1M
