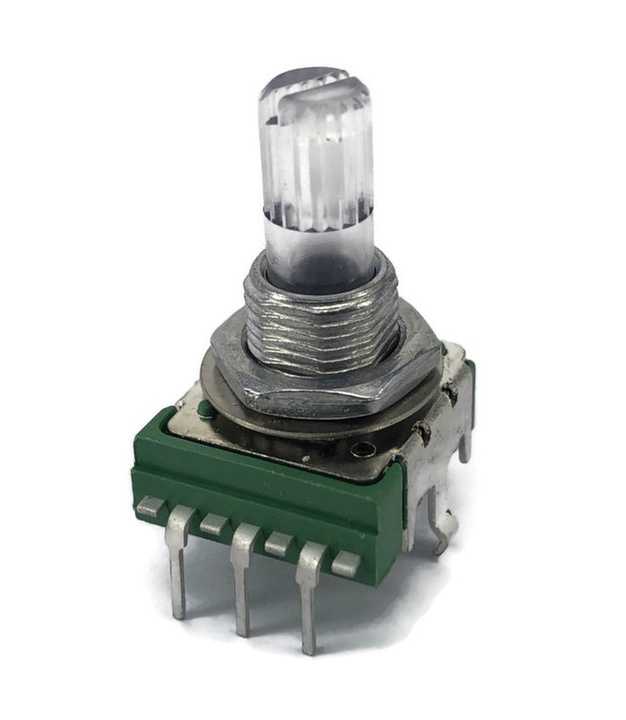

Rotary 100K OHM Linear Taper 14mm Potentiometer Transparent Spline Shaft

Sale

Rotary 100K OHM Linear Taper 14mm Potentiometer Transparent Spline Shaft

Available Qty: 527

SKU: A-6333

ALPHA

B100K OHM Linear

PCB Mount

SPLINE SHAFT 18mm (11mm+7mm)

RV141F is designed for AC voltage only

No Click

$1.30

Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV141F-40E3-18BL-B100K
Datasheet: Click Here

Specifications
Power: 50mW
Resistance: 100K OHM OHMS
Type: Linear
Type B
Tolerance: ±20%
Features
T18 Spline Shaft
Terminal Type: Vertical
Bushing
Max Operating Voltage: 50VAC(RV141F is designed for AC voltage only)
Shaft Diameter: 6mm

Shaft Length: 18mm(11mm+7mm)
Length of thread: 7mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items	-
SKU	A-6333
Manufacturer	ALPHA
MPN	RV141F-40E3-18BL-B100K
Can be used with	-

Customer Ratings

There are no reviews yet

No reviews yet, be the first to share your feedback!
