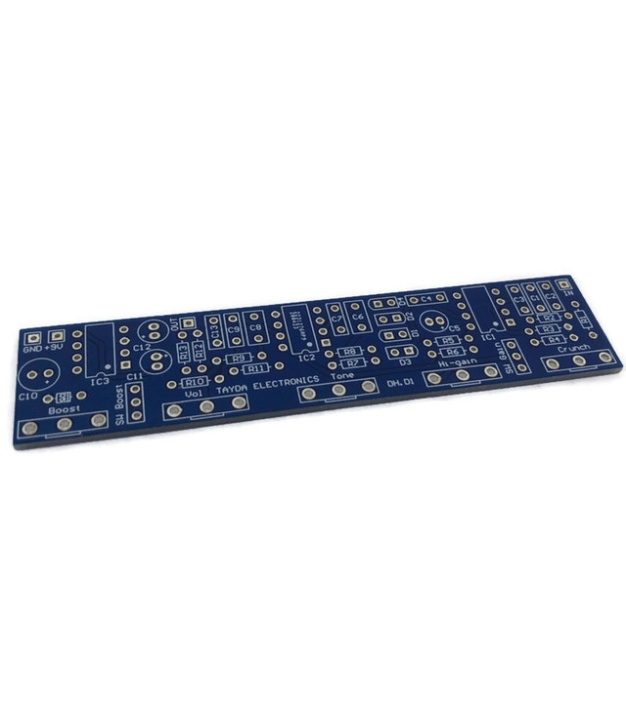

Plexitone DIY PCB Guitar Effect

Available Qty: 72

SKU: A-1451

DH Electro Acoustics

PCB for Plexitone DIY Project

See Project details at TAYDAKITS Plexitone

$9.99

Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: DH Electro Acoustics
Manufacturer Part No: DHD1

This listing sale is ONLY for PCB itself.
You can purchase all other components required for this project from Tayda (components are sold separately). You can find list of parts required for this project from below link.
For detailed instructions please visit TAYDAKITS Plexitone
www.taydakits.com/instructions/plexitone
THERE IS NO PRINTED DATASHEET OR SCHEMATICS PROVIDED WITH THIS ITEM

Specifications
Effect Type: Distortion
High quality manufactured PCB
Board-mounted potentiometers
Designed for Hammond 1590B enclosure
Bigger pads for easy soldering
PCB Dimensions: 101 x 23 mm

More Information

Same Spec Items	-
SKU	A-1451
Manufacturer	DH Electro Acoustics
MPN	DHD1
Can be used with	-
