PCF8591T Analog Digital Converter Module

Be the first to review this product

$1.50

Qty Available: 398888

In stock

Quick Overview

Tayda Electronics - Get It Fast - Same Day Shipping

Details

  The PCF8591 is a monolithically integrated, and a separate power supply, low-power, 8-bit CMOS data acquisition devices. The PCF8591 has the four analog inputs, one analog output and a serial I2C bus interface. It requires 2.5-6V supply voltage and have low stand-by current.PCF8591 three address pins A0, A1 and A2 can be used in hardware address programmed 8 PCF8591 device allows access to the same I2C bus, without the need for additional hardware. On the PCF8591 device input and output of the address, control and data signals are transmitted in serial fashion via the two-wire bidirectional I2C bus.

Manufacturer: Tayda Electronics
Manufacturer Part No.: PCF8591T
Datasheet:
Click Here
RoHS: Yes



Specifications
Model: PCF8591
 Operating supply voltage 2.5 V to 6 V
 Serial input/output via I2C-bus
4 analog inputs programmable as single-ended or differential inputs
 8-bit successive approximation A/D conversion

Tutorial Click Here
Example Click Here

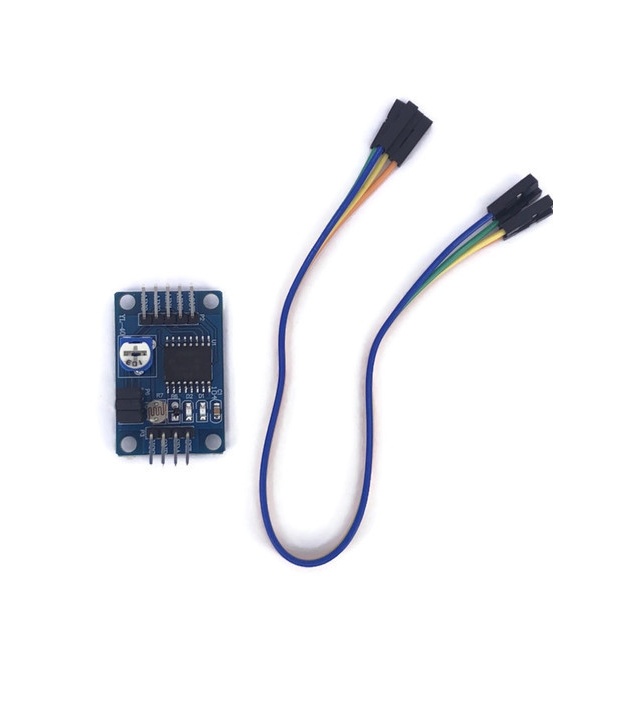

Packing list:
1 x A/D D/A converter module
4 x Dupont cables (21cm)

Additional Information

Manufacturer Tayda Electronics
MPN PCF8591T Module
SKU A-4231
