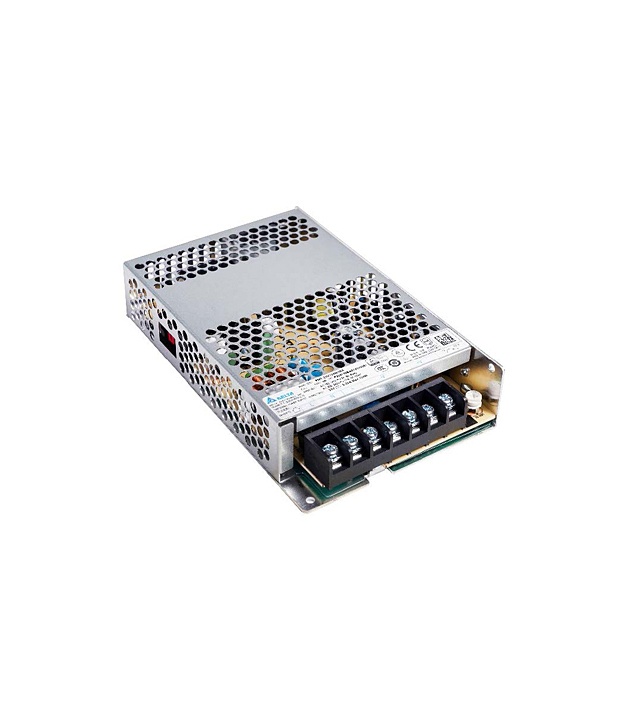

Power Supply Module DC 12V Out 12.5A Panel Mount
$19.00

Power Supply Module DC 12V Out 12.5A Panel Mount

Available Qty: 398888
SKU: A-7475
DELTA
Suitable for Electrical power supply, also suitable for equipment power supply when space is small but the equipment needs high power.
$19.00
Have questions? Expert help just one click away Contact Us

Product Description

Manufacture: DELTA
Manufacturer Part Number: PMT-12V150W2BA
Datasheet: Click Here
RoHs: Yes


Specifications
Nominal Input voltage: 100-120Vac, 200V-240Vac 50-60Hz (Selectable by Switch)
Input Voltage Range: 90-132Vac, 180-264Vac (Selectable by Switch)
Output voltage: DC12V
Output Voltage Adjustment Range: 10.8-13.2Vdc
Output current:12.5A
Output Power: 150W
1 Phase
Size(LxWxH): 159x97x30mm
Operature Temperature: -30°C to 70°C


Suitable for Electrical power supply, also suitable for equipment power supply when space is small but the equipment needs high power.
Supports for general industrial and ITE applications

More Information

Same Spec Items -
SKU A-7475
Manufacturer DELTA
MPN PMT-12V150W2BA
Can be used with -
