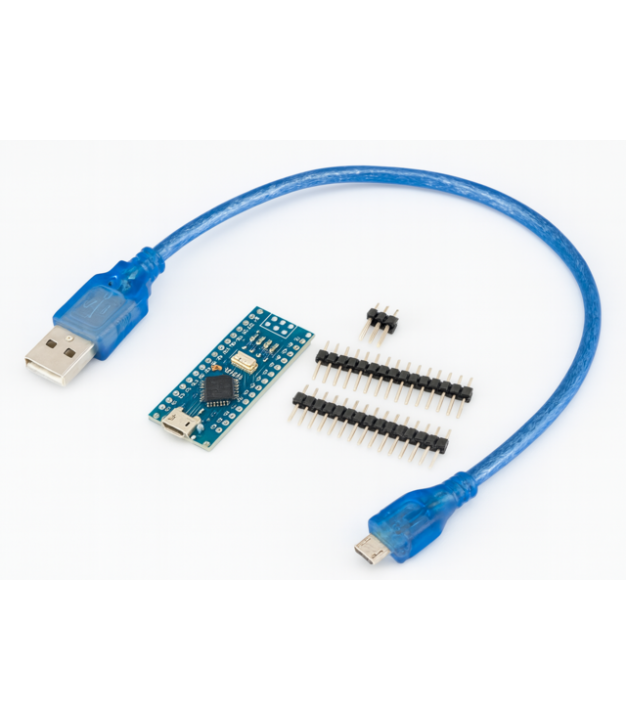

Micro USB Nano V3.0 Controller Module Compatible with Arduino Nano
$3.69

Micro USB Nano V3.0 Controller Module Compatible with Arduino Nano

Available Qty: 182
SKU: A-8400
AIM
ATMEGA328P-BU MCU
With Micro USB Cable & Pin Headers
$3.69
Have questions? Expert help just one click away Contact Us

Product Description

Specifications:
Arduino Nano V3 Compatible
This is an Arduino Nano V3 Clone. It should work the same and be as simple to use as all other Arduino boards. Simply select Arduino Nano V3 w/ ATMega328 as your board when flashing in the Arduino IDE.
ATMEGA328P-BU MCU
CH340G USB Driver
With Micro USB Cable & Pin Headers

Technical Specifications:
Microcontroller: ATmega328
Operating Voltage: 5 V
Recommended Input Voltage: 7-12 V
Maximum Input Voltage: 20V (Not recommended)
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog In Pins: 8
Approximate DC Current per Pin: 40 mA
Flash Memory: 32 KB of which 2 KB is used by boot loader
SRAM: 2 KB
EEPROM: 1 KB
Clock Speed: 16 MHz

Arduino doesn't support the Arduino Nano with CH340 drivers any longer. So you must download and install them separately before this will work. Drivers are available here.
For MAC users, one of our customer recommended a fix for MAC from this link here.

More Information

Same Spec Items -
SKU A-8400
Manufacturer AIM
MPN Micro USB Nano 3.0
OG image no_selection
Can be used with -

Customer Ratings

There are no reviews yet
