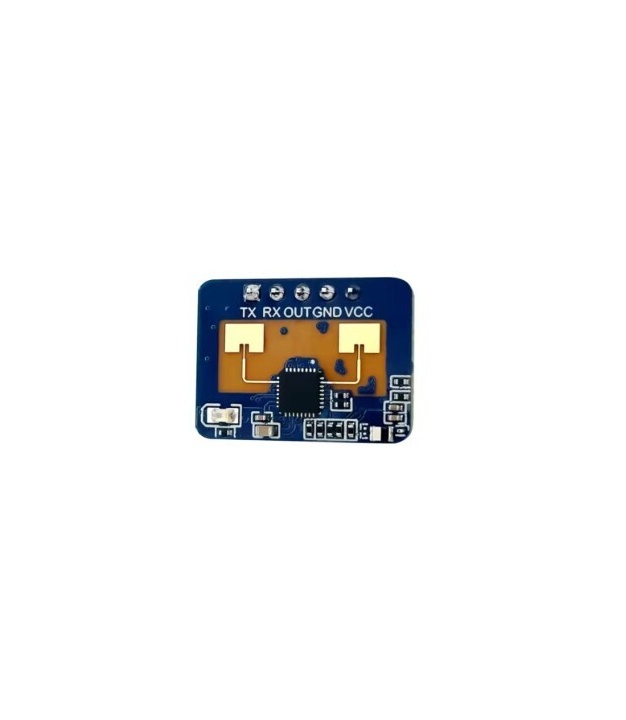

LD2410C 24GHz Human Presence Sensor Module
$4.19

LD2410C 24GHz Human Presence Sensor Module

Available Qty: 3
SKU: A-8045
TAYDA
Use with Arduino
$4.19
Have questions? Expert help just one click away Contact Us

Product Description

HLK-LD2410C is a 24GHz high-sensitivity human presence detection module developed by Hilink Electronics. Its working principle is to use the FMCW frequency-modulated continuous wave to detect human targets in the designated area, combined with radar signal processing, accurate human body induction algorithm, to achieve high-sensitivity human presence detection, which can identify the human body in the state of movement and stationary, and can calculate auxiliary information such as the distance to the target.  This product is mainly used in indoor scenes to detect the presence of a moving or slight movement of a human body in the area, and output real-time detection results. The maximum detection range is 6 meters, and the resolution is 0.75 meters. Provides image configuration tools, which can easily configure the detection distance and detection range at different times, sensitivity and unmanned delay time, etc., to adapt to the needs of different specific applications.  Support GPIO and UART output, plug and play, and can be flexibly applied to various intelligent scenarios and terminal products.

Specifications
Voltage Rated: 5V
Detection distance: 0.75m to 6m
Frequency Band: 24GHz
Size(WxL): 16mm x 22mm
Tutorial: Click Here

More Information

Same Spec Items -
SKU A-8045
Manufacturer TAYDA
MPN LD2410C
