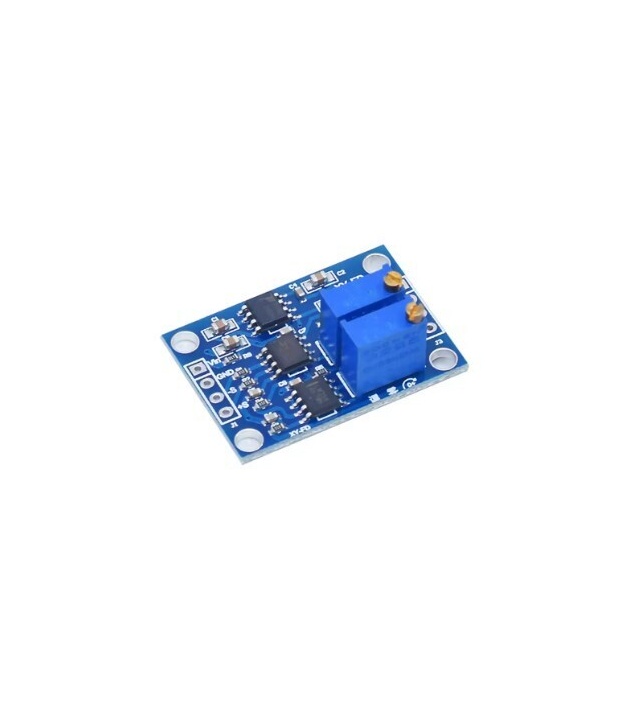

AD620 Signal Amplifier Module
$2.09

AD620 Signal Amplifier Module

Available Qty: 9
SKU: A-8240
Tayda Electronics
$2.09
Have questions? Expert help just one click away Contact Us

Product Description

AD620 is used as a main amplifier to amplify microvolt and millivolt voltages, the amplification factor is 1.5-10,000 times, high precision adjustable, low misalignment and better linearity, zero adjustment to improve accuracy, can be used for AC and DC amplification.  High precision, low offset, AC/DC/millivoltage microvoltage voltage amplifier, suitable for AC/DC small signal amplification, microvolt/millivolt voltage amplification

Specifications
Power supply: 3-12V
Magnification factor: adjustable from 1.5-1,000 times
 Signal input voltage: 100uV-300mV
Voltage unbalance: 50 uV
Input bias current: 1.0nA
Common mode rejection ratio: 100dB
Size(LxW): 22x32mm



More Information

Same Spec Items -
SKU A-8240
Manufacturer Tayda Electronics
MPN AD620
OG image no_selection
Can be used with -

Customer Ratings

There are no reviews yet
