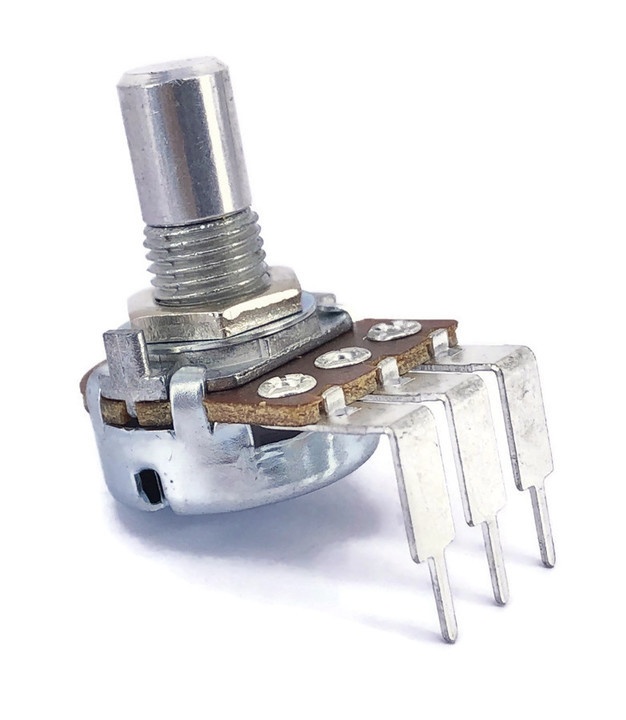

1K OHM Linear Taper Potentiometer PCB Mount Round Shaft Dia: 6.35mm
$0.59

1K OHM Linear Taper Potentiometer PCB Mount Round Shaft Dia: 6.35mm

Available Qty: 684 500 more arriving: Nov 30, 2026
SKU: A-2489
ALPHA
ALPHA 16MM l PCB Mount
SHAFT DIA: 6.35MM
B1K OHM LINEAR
ROUND SHAFT 15mm (8.5mm + 6.5mm)
Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now
Buy Dust Seal Click Here
$0.59
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-41-15R1-B1K
Datasheet: Click Here
RoHS: Yes

Specifications
Power: 0.125W
Resistance: 1K OHM OHMS
Type: Linear
Type B
Features
Round Shaft
PCB Mount
Suits Most Standard knobs
Shaft Diameter: 6.35mm

Shaft Length: 15mm(8.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 04 October 2021.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here

More Information

Same Spec Items -
SKU A-2489
Manufacturer ALPHA
MPN RV16AF-41-15R1-B1K
