8x8 Dot Matrix LED Display Red 3mm Row Cathode

Sale

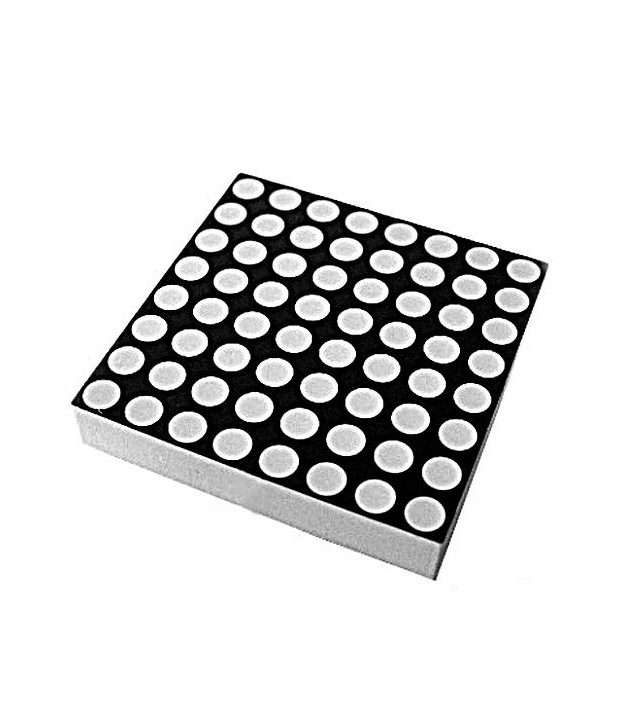

8x8 Dot Matrix LED Display Red 3mm Row Cathode

Available Qty: 3988888

SKU: A-1316

OASIS

SKU: 1316

8x8 Dot Matrix

Red 625-630nm

Common Cathode

LED 3mm

$1.35

Have questions? Expert help just one click away Contact Us

Product Description

These bright LEDs will have everyone mesmerized in no time! Easy to wire and easy to play with, this 8x8 LED matrix is a great way to get your hands dirty in understanding matrices better or to just play with some awesome lights!

This little matrix requires some wiring but go slow and check all the wires and it should light up for you as easily as it lit up for me! Shown below is a wiring diagram. It's easier than it looks.

Once you get everything wired, there is a script to make the dots spin around the perimeter of the matrix available here.

Manufacturer: OASIS
RoHS: Yes
Datasheet: Click Here
Specifications
Emitted Colour: Red
Face Color: Black
Type: Row Cathode Column Anode
Wavelength : 625 ~ 630nm
Forward Voltage : 2.1V ~ 2.5V
Forward Current: 20mA
Dimesions: 32mm x 32mm x 8.0mm
