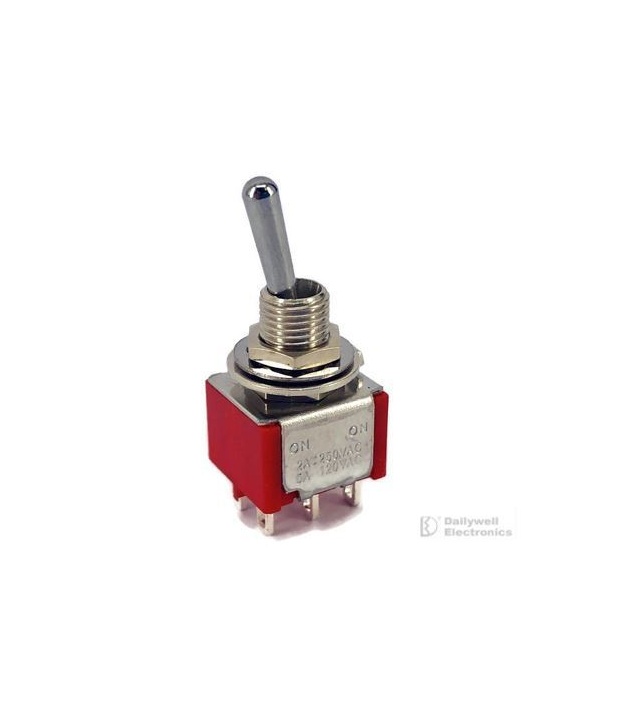

Mini Toggle Switch 1M Series DPDT On-On
  • Mini Toggle Switch 1M Series DPDT On-On
  • Mini Toggle Switch 1M Series DPDT On-On
  • Mini Toggle Switch 1M Series DPDT On-On

Mini Toggle Switch 1M Series DPDT On-On

Be the first to review this product

$0.77

Qty Available: 604

In stock

3000 More Arriving Jan 17, 2020

Quick Overview

DAILYWELL ELECTRONICS - Get It Fast - Same Day Shipping

Details

Manufacturer: Dailywell Electronics
Manufacture Part No.: 1MD1T1B1M1QES
Datasheet: Click  Here
RoHS: Yes

Switch Function: ON-ON
Lightweight Construction
Standard Hole Mounting
Current Rating: 5A @ 120V
AC or 28VDC
Body Length: 12.7mm, Body Width: 11.43mm, Body Height: 8.89mm
Pin Size(WxTxH): 2.03mmx0.76mmx3.96mm
Pin Spacing: 4.70mm
Mounting Hole: 6.35mm diameter
Overall Height: 32.15mm



Additional Information

Manufacturer DAILYWELL ELECTRONICS
MPN 1MD1T1B1M1QES
SKU A-3188
