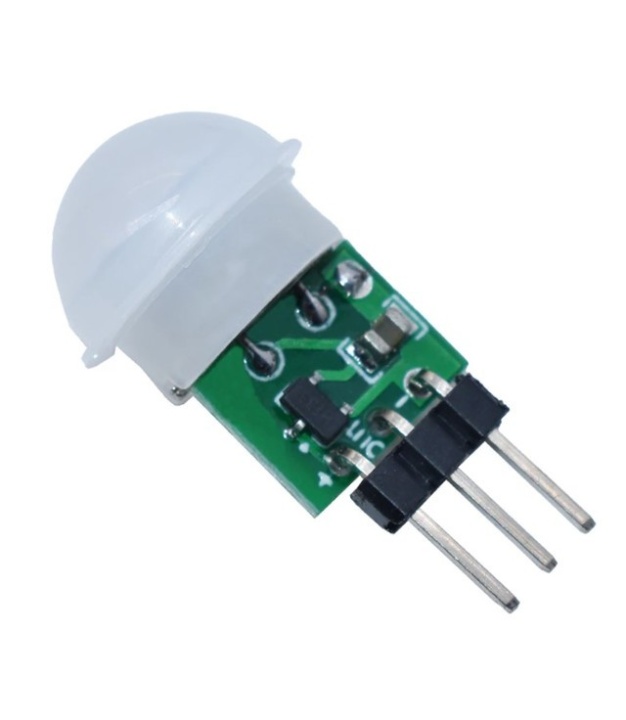

Mini PIR Motion Sensor Switch Module
Quick Overview
Details
Specifications
Operating voltage: 2.7 to 12VDC
Static power consumption: <0.1mA
Delay time: 2 Sec
Block Time: 2 Sec
Trigger mode: Repeatable
Sensing range: ≤ 100 degrees cone angle, 3-5 meters; (according to the specific lens)
Operating Temperature: -20 to 60°
Module Lens: Small Lens
PCB Dimension(L*W): 10*8mm
Product features:
1. Low power consumption, small size, easy installation.
2. Internal use of digital signal processing PIT, strong interference.
3. High sensitivity, reliability, and can be widely used in automatic detection circuit
4. Repeatable trigger mode: that is, after the induction output is high, in the delay period, if the body in the induction period of activity, the output will remain high until the delay after the person to become low level ( Ie, the detection module detects a delay period after each activity of the body, and uses the last active time as the starting point for the delay).
Additional Information
SKU | A-6924 |
---|---|
Manufacturer | Tayda Electronics |
MPN | Mini PIR Motion Module |
