IR2153 SELF-OSCILLATING HALF-BRIDGE DRIVER IC
$0.79

IR2153 SELF-OSCILLATING HALF-BRIDGE DRIVER IC

Available Qty: 3988888
SKU: A-919
International Rectifier
SKU: A-919
IR2153PBF
International Rectifier

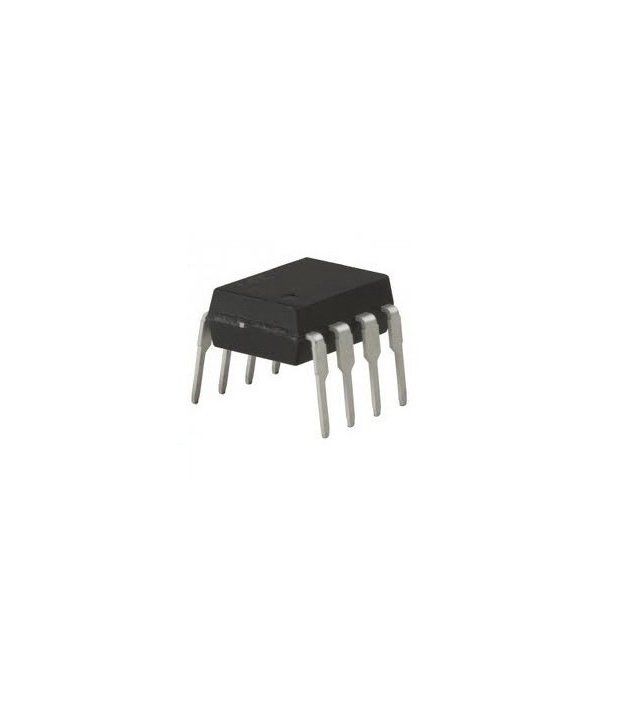

PDIP-8
$0.79
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: International Rectifier
Manufacturer Part No: IR2153PBF
RoHS: Yes
Datasheet: Click Here

Specifications
Product: Half-Bridge Drivers
Type: Self-Oscillating Half-Bridge Driver IC
Rise Time: 150 ns
Fall Time: 100 ns
Supply Voltage - Max: 20 V
Supply Voltage - Min: 10 V
Supply Current: 5 mA
Maximum Power Dissipation: 1000 mW
Maximum Operating Temperature: + 125 C
Configuration: Self-Oscillating
Minimum Operating Temperature: - 40 C
Number of Drivers: 2
Number of Outputs: 2
Operating Supply Voltage: 10 V
Output Current: 0.4 A
Output Voltage: 10 V to 20 V

More Information

Same Spec Items -
SKU A-919
Manufacturer International Rectifier
MPN IR2153PBF
Can be used with -

Customer Ratings

There are no reviews yet
