74HC125 HD74HC125P 74125 Quad Bus Buffer Tri-State IC
$0.30

74HC125 HD74HC125P 74125 Quad Bus Buffer Tri-State IC

Available Qty: 3988888
SKU: A-888
RENESAS
$0.30
Have questions? Expert help just one click away Contact Us

Product Description



Pin Out of this IC


Manufacturer:Renesas
Manufacturer Part No:HD74HC125P

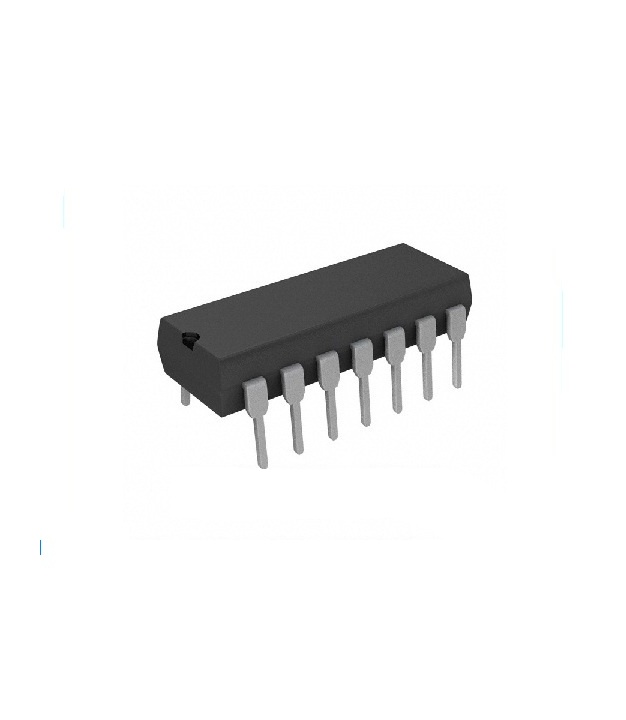

Package / Case:PDIP-14
RoHS: Yes
Datasheet: Click Here

Specifications
Product Category: Buffers & Line Drivers
Number of Input Lines: 4
Number of Output Lines: 4
Polarity: Non-Inverting
Supply Voltage - Max: 6 V
Supply Voltage - Min: 2 V
Maximum Operating Temperature: + 85 C
Mounting Style: Through Hole
High Level Output Current: - 7.8 mA
Logic Family: HC
Logic Type: CMOS
Low Level Output Current: 7.8 mA
Minimum Operating Temperature: - 40 C
Number of Channels per Chip: 4
Output Type: 3-State
Propagation Delay Time: 150 ns at 2 V, 30 ns at 4.5 V, 25 ns at 6 V

More Information

Same Spec Items -
SKU A-888
Manufacturer RENESAS
MPN HD74HC125P
