74HC00 7400 Quad 2-input NAND Gate IC
$0.39

74HC00 7400 Quad 2-input NAND Gate IC

Available Qty: 494
SKU: A-920
VARIOUS
SKU: A-920
SN74HC00N
Texas Instruments

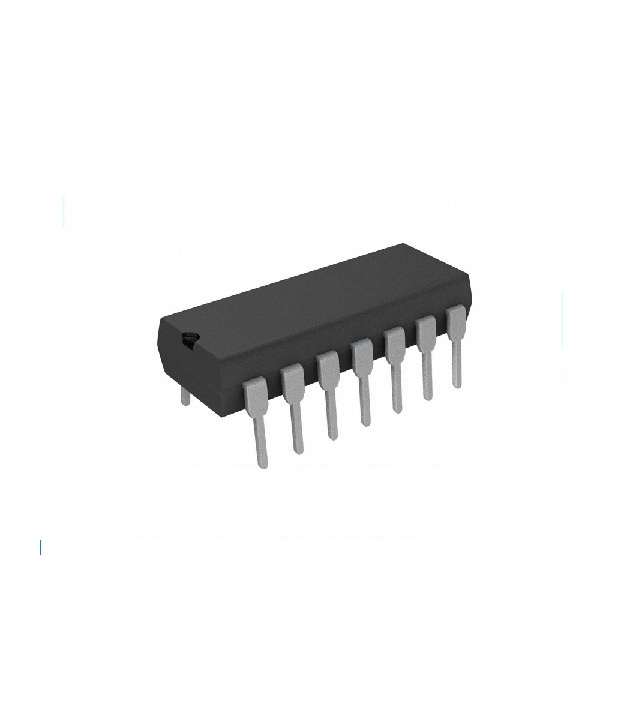

PDIP-14
$0.39
Have questions? Expert help just one click away Contact Us

Product Description



This is considered one of the universal logic gates as any logic gate can be created using a combination of NAND gates. Luckily this has 4 NAND gates on a single chip and can be used to generate many combinations of other logic gates. Have fun playing with this logic chip as its a good way to familiarize yourself with the use of logic gates.



Manufacturer: VARIOUS
Manufacturer Part No: SN74HC00N
RoHS: Yes


Specifications
Product: NAND
Logic Family: 74HC
Number of Gates: 4
Number of Lines (Input / Output): 2 / 1
High Level Output Current: - 5.2 mA
Low Level Output Current: 5.2 mA
Propagation Delay Time: 90 ns
Supply Voltage - Max: 6 V
Supply Voltage - Min: 2 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Number of Input Lines: 2
Number of Output Lines: 1

More Information

Same Spec Items -
SKU A-920
Manufacturer VARIOUS
MPN SN74HC00N
Can be used with -
