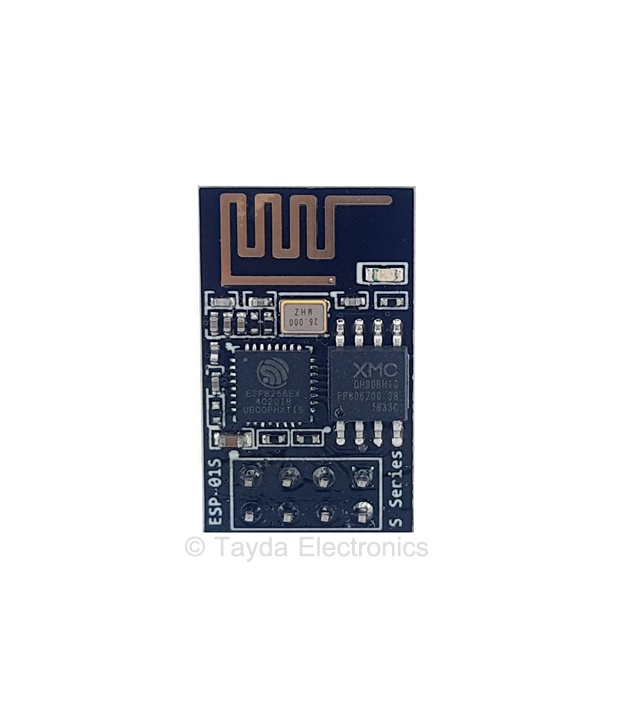

ESP8266EX ESP-01S Wireless Transceiver Module with 1MB Flash

SKU: A-2194
Espressif
Arduino compatible
This new version of the ESP8266 WiFi Module has increased the flash disk size from 512KB to 1MB
$4.33
This item is currently out of stock.
Have questions? Expert help just one click away Contact Us

You may also like

ESP-01S Relay Module V4.0
Sale
SKU: A-4234
ESP-01S Relay Module V4.0
$0.70

Product Description

Chip Manufacturer: Espressif
Manufacturer Part No: ESP8266EX
Datasheet: Click Here
RoHS: Yes

This is a wifi solution based on IC ESP8266 from Espressif.The ESP8266 wifi module is a self contained SOC with integrated TCP/IP protocal stack that can give any microcontroller access to your WIFI network.

ESP8266 module is of low cost and comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers.This module has a powerful on-board processing and storage capability that allows it to be integrated with the sensors and other application through its GPIOs,they're so easy to use. You can find an example of code and wiring here: Example


Technical Data:
Model:ESP-01S
1MB Flash size
AP,STA,AP+STA modes available
Wireless Standard:802.11 b/g/n
Safty Mode: WPA/WPA2
Encryption Type: WEP/TKIP/AES
Network Protocal: IPV4,TCP/UDP/HTTP/FTP
Frequency Range: 2.4GHz-2.5GHz(2400M-2483.5M)
Data Interface: UART/SPI/I2C/I2S/Ir Remote Control/GPIO/PWM
Working Voltage: 3.3V
Operating Current: ~80mA
Operating Temperature:-40~+125


More Information

Same Spec Items A-4234
SKU A-2194
Manufacturer Espressif
MPN ESP8266EX
Can be used with -
