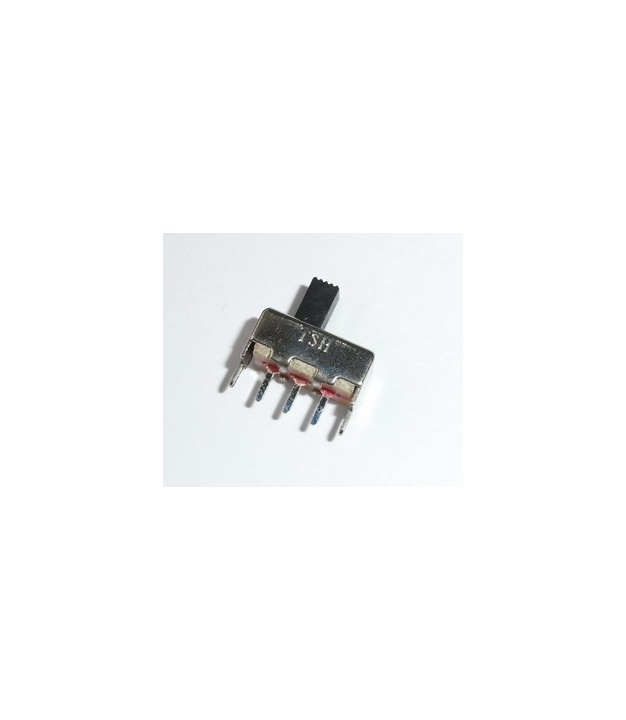

Slide Switch 1P2T Through Hole 0.5A 50VDC
SKU
A-659
$0.05
In stock
Qty Available: 3988878
Quick Overview
WEALTH METAL - Get It Fast - Same Day Shipping
Details
ROHS: Yes
Datasheet: Click Here
Specifications
Actuator Height: 5mm
Pitch: 3.00mm
Circuit: 1P2T
Current Rating: 0.5A / 50VDC
Mounting Type: Through Hole
Switch Feature: Slide Switch
Additional Information
| SKU | A-659 |
|---|---|
| Manufacturer | WEALTH METAL |
| MPN | SS12F44G5 |
Customer Reviews
-
Good quality, but take note of pin spacingGood quality, but note that this has 3mm pin spacing, not the more common 2.54mm spacing. You'll usually be able to squeeze it into a breadboard, but fitting it into stripboards(like taydas own) will probably not work.
Posted on
-
Another quality productThe item is manufactured by TOY and has no part number marked but it is a quality product.
The body measures about 12mm x 6mm x 6mm plus the solder tabs and to switch tab. The switch tab is 3mm x 3mm and sticks up 5mm. The solder tabs hang down 3mm.
The spacing and pins are breadboard friendly after you tweak the end tabs in. Keep in mind breadboards vary. Also, the outside casing occupies two slots on the breadboard and conducts so be sure to avoid accidental connections.
The switch works with PCBs and solders without issue.
The switch action is smooth and has a light but definite click when you flip it.
I use it to switch the power to logic and Micro-controller circuits and it works great.
Overall I would buy it again and would recommend it to a friend.Posted on
