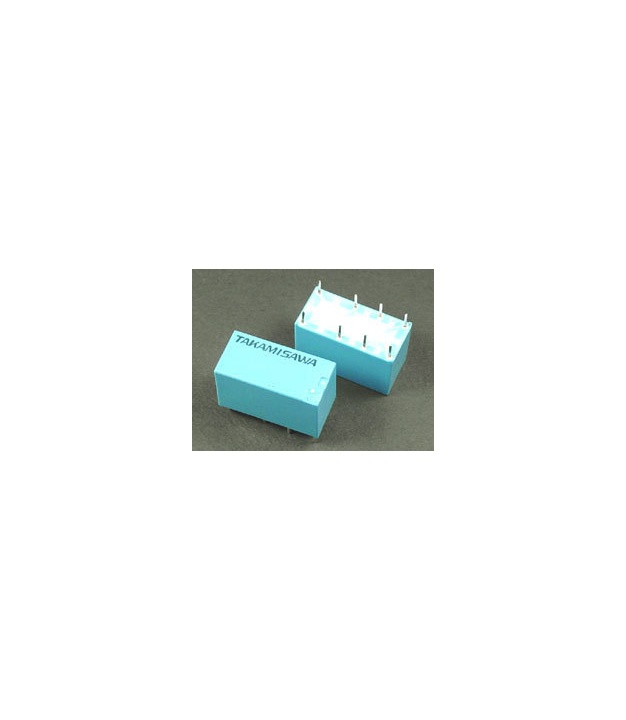

Mini Relay DPDT RY-12W-K-UL 12VDC 8PIN 2Poles 1A
$1.80

Mini Relay DPDT RY-12W-K-UL 12VDC 8PIN 2Poles 1A

Available Qty: 398885
SKU: A-3968
FUJITSU COMPONENTS
Coil Voltage : 12VDC
Contact Rating : 1A
Contact Rating : 0.5A/120VAC , 1A/24VDC
$1.80
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer : FUJITSU COMPONENTS
Manufacturer Part No. : RY-12W-K-UL
Datasheet : Click Here
RoHS : YES

Specification
Coil Voltage : 12VDC
Contact Rating : 1A
Switch Function : DPDT(2 Form C)
Contact Rating : 0.5A/120VAC , 1A/24VDC
Type : High Sensitive
Operating Function : Non-Latching Type
Mounting : PCBThough Hole
Dimension(WxDxH) : 9.8 x 20.2 x 12.5 mm

Features
For signal switching,Bifurcated Style,Ultra high sensitivity,Surge stength 1500 V,Wide operating range,High reliability-bifurcated contacts



More Information

Same Spec Items -
SKU A-3968
Manufacturer FUJITSU COMPONENTS
MPN RY-12W-K-UL
Can be used with -
