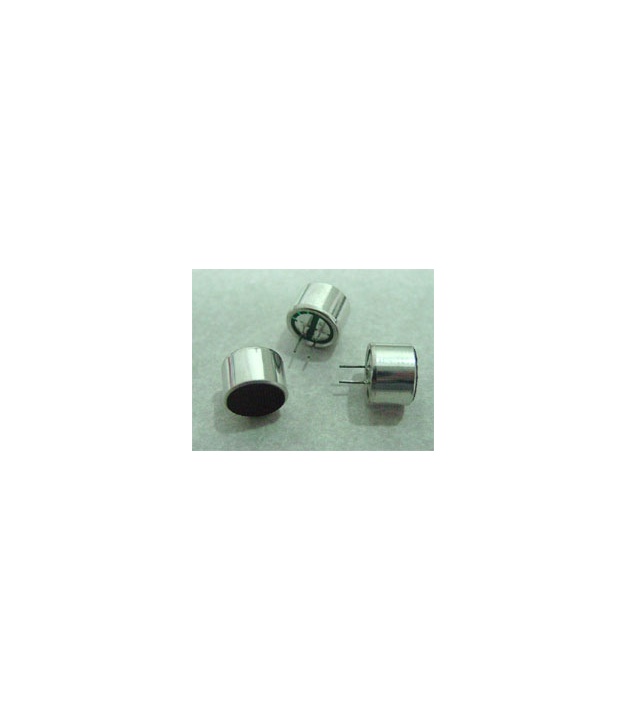

CONDENSER MICROPHONE 1.5K OHM 1.5V
Available Qty:
3988880
SKU: A-5010
OBO
$0.25
was
Have questions?
Expert help just one click away
Contact Us
Product Description
Manufacturer: OBO
Manufacturer Part NO.: OBO-04FP-0A-1F0
Manufacturer Part NO.: OBO-04FP-0A-1F0
Datasheet: Click Here
Specification
Type: Omni-Directional
Feature: CYLINDER
Current Consumtion: 0.5mA
Frequency: 50-16000Hz
Impedance: 1500 OHM
S/N Ratio >58
Sensitivity: -40dB
Size / Dimension: 9.7 x 6.5mm
Current Consumtion: 0.5mA
Frequency: 50-16000Hz
Impedance: 1500 OHM
S/N Ratio >58
Sensitivity: -40dB
Size / Dimension: 9.7 x 6.5mm
More Information
| Same Spec Items | - |
|---|---|
| SKU | A-5010 |
| Manufacturer | OBO |
| MPN | CONDENSER MICROPHONE 1.5K OHM 1.5V |
| Can be used with | - |
Customer Ratings
4.9/5
Based on 4 reviews
|
5 Stars |
|
11 |
|
4 Stars |
|
1 |
|
3 Stars |
|
0 |
|
2 Stars |
|
0 |
|
1 Star |
|
0 |
5
Quality
5
Value
4
Price
fair quality
pretty good microphone at a pretty good price
Kris
5
Quality
5
Value
5
Price
Inexpensive way to build a nice desk mic for HF amateur radio ransceiver
I started experimenting with this mic at the workbench and after building a simple microphone preamp thought that it would be worth hooking it up to my Kenwood TS-430S amateur radio transceiver. After fiddling around with the audio input levels on the Kenwood, I'm getting reports that "it's a keeper". It turned out to be a nice desk mic, for about $0.35 in parts!
For the preamp (used for the transceiver input), I used a schematic on the web using one 2N3904 transistor and a few resistors and capacitors. Then I hooked up the mic using shielded cable and finally adding a 4.7K resistor and 10K resistor to prevent RF feedback squeal. This fix is on the web as well. The mic preamp is powered with two AA cells and the signal input is further attenuated with a 10K resistor. You will probably need to do something differently depending on your transceiver.
Very cost-effective for amateur radio applications!
KB1UAL
For the preamp (used for the transceiver input), I used a schematic on the web using one 2N3904 transistor and a few resistors and capacitors. Then I hooked up the mic using shielded cable and finally adding a 4.7K resistor and 10K resistor to prevent RF feedback squeal. This fix is on the web as well. The mic preamp is powered with two AA cells and the signal input is further attenuated with a 10K resistor. You will probably need to do something differently depending on your transceiver.
Very cost-effective for amateur radio applications!
5
Quality
5
Value
5
Price
great mics
Excellent quality microphones
Jennifer
5
Quality
5
Value
5
Price
great mics
Excellent quality microphones.
Jen
