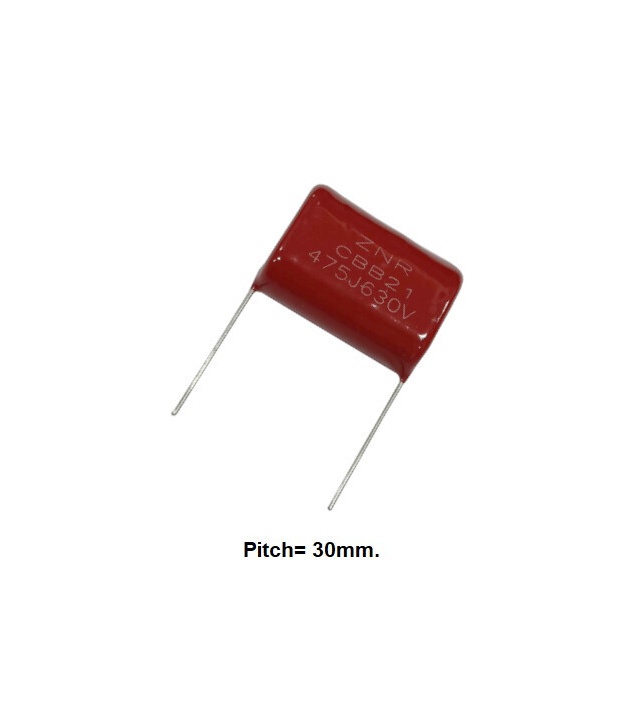

4.7uF (475) 630V 5% Metallized Polypropylene Film Type Capacitor

Manufacturer: DERSONIC
Manufacturer Part No.:CFC2J475JP1I3300J100
Datasheet: Download the file
RoHs: Yes

Specification
Capacitance: 4.7uF
Voltage-Rated: 630V
Tolerance: ±5%
Features: General Purpose
Maximum Temparature: 105°C
Body Height: 23mm
Body Lenght: 33mm
Body Thickness: 14mm
Lead Spacing: 30mm
Dielectric Type: Metallized Polypropylene Film

Helpful details and usage tips:
- 4.7uF 630V metallized polypropylene box-type capacitor with low ESR/ESL, self-healing dielectric, and tight ±5% tolerance.
- Great for audio crossovers/coupling, high-voltage DC filtering in SMPS, snubber and pulse applications, and EMI filtering on DC rails (not safety-rated for across-the-line AC).
- Stable to 105°C with low dissipation factor for long-term reliability.
- Size: 33 x 14 x 23 mm; 30 mm lead pitch fits common through-hole layouts—verify board clearance.
- Selection tip: keep peak operating voltage (including spikes) at least 20–30% below 630V for robust margin. RoHS compliant.
