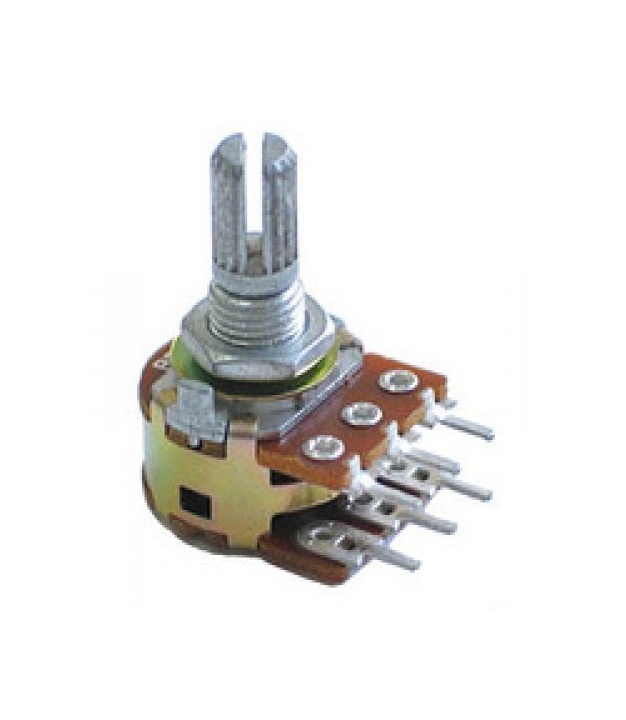

5K OHM Anti-Log Dual Taper Potentiometer

SKU: A-938
ALPHA
ALPHA 16MM
C5K OHM ANTI-LOG DUAL
PCB Mount
T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)
$0.80
This item is currently out of stock.
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16A01F-20-17K-C5K
Datasheet: Click Here
RoHS: Yes


Specifications
Adjustment Type Top Adjustment
Power 0.06W
Resistance 5K OHM
Type Anti-Log Reverse Dual Gang
Type C
Features
Knurled Shaft
Suits Most Standard Knobs
Shaft Diameter 6mm

Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Height 9mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-938
Manufacturer ALPHA
MPN RV16A01F-20-17K-C5K
