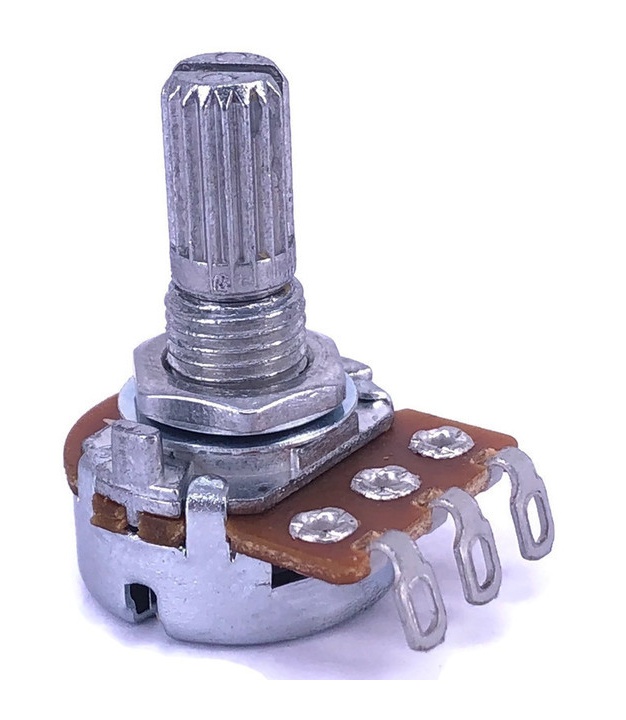

5K OHM Anti-Log Taper Potentiometer Solder Lugs

SKU
A-4178
$0.50

500 More Arriving Apr 27, 2023

In stock Qty Available: 18

Quick Overview

ALPHA - Get It Fast - Same Day Shipping

Details

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-10-17K-C5K

With Dust Seal
Solder Lugs
Datasheet: Click Here


Specifications
Adjustment Type: Top Adjustment
Power: 0.06W
Resistance: 5K OHM OHMS
Type: Anti-Log Reverse
Type C
Features
T18 Spline Shaft
Suits Most Standard knobs

Shaft Diameter: 6mm

Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm

Rotation Angle: 300 ± 5°

Additional Information

More Information
SKU A-4178
Manufacturer ALPHA
MPN RV16AF-10-17K-C5K
