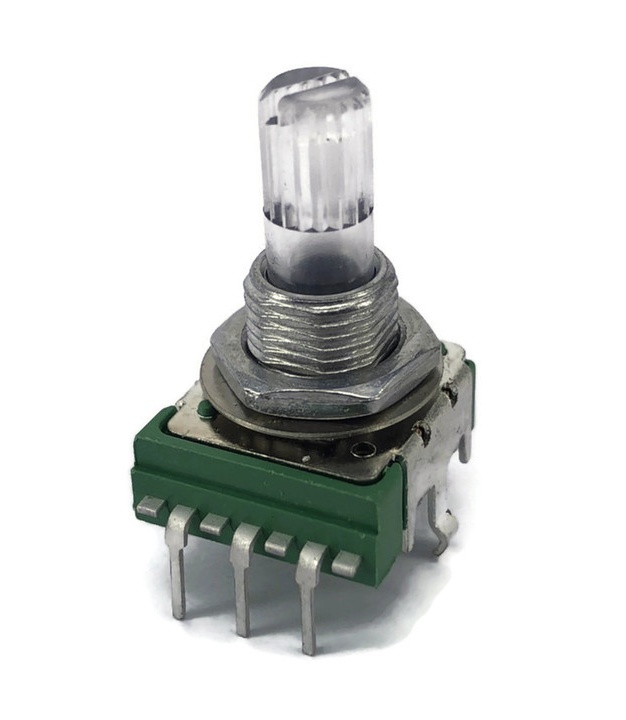

Rotary 10K OHM Linear Taper 14mm Potentiometer Transparent Spline Shaft

SKU
A-6332
$1.30
In stock Qty Available: 650

Quick Overview

ALPHA - Get It Fast - Same Day Shipping

Details

Manufacturer: ALPHA
Manufacturer Part No:
RV141F-40E3-18BL-B10K
Datasheet: Click Here


Specifications
Power: 50mW
Resistance: 10K OHM OHMS
Type: Linear
Type B
Tolerance: ±20%
Features
T18 Spline Shaft
Terminal Type: Vertical
Bushing
Max Operating Voltage: 50VAC(RV141F is designed for AC voltage only)
Shaft Diameter: 6mm

Shaft Length: 18mm(11mm+7mm)
Length of thread: 7mm
Rotation Angle: 300 ± 5°

Additional Information

More Information
SKU A-6332
Manufacturer ALPHA
MPN RV141F-40E3-18BL-B10K
