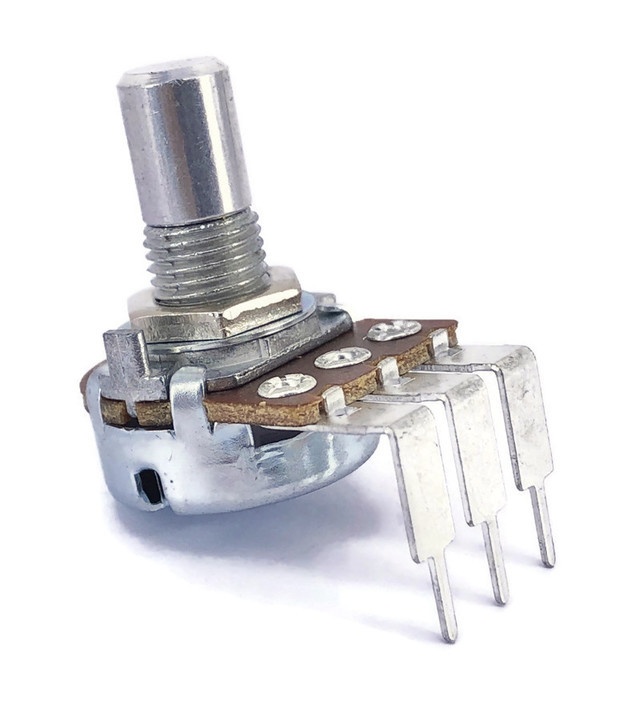

100K OHM Linear Taper Potentiometer PCB Mount Round Shaft Dia: 6.35mm
$0.59

100K OHM Linear Taper Potentiometer PCB Mount Round Shaft Dia: 6.35mm

Available Qty: 8838
SKU: A-5408
ALPHA
ALPHA
SHAFT DIA: 6.35MM
B100K OHM LINEAR
PCB Mount
ROUND SHAFT 15mm (8mm + 7mm)
$0.59
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-41-15R1-B100K-3
Datasheet: Click Here


Specifications
Power:0.125W
Resistance: 100K OHM OHMS
Type: Linear
Type B
Features
Round Shaft
PCB Mount
Suits Most Standard knobs
Shaft Diameter: 6.35mm

Shaft Length: 15mm(8.5mm+6.5mm)
Length of thread : 6.5mm
Mounting Hole: 7mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-5408
Manufacturer ALPHA
MPN RV16AF-41-15R1-B100K-3
Can be used with -
