1M OHM Linear Taper Potentiometer Spline Shaft PCB Mount

Sale

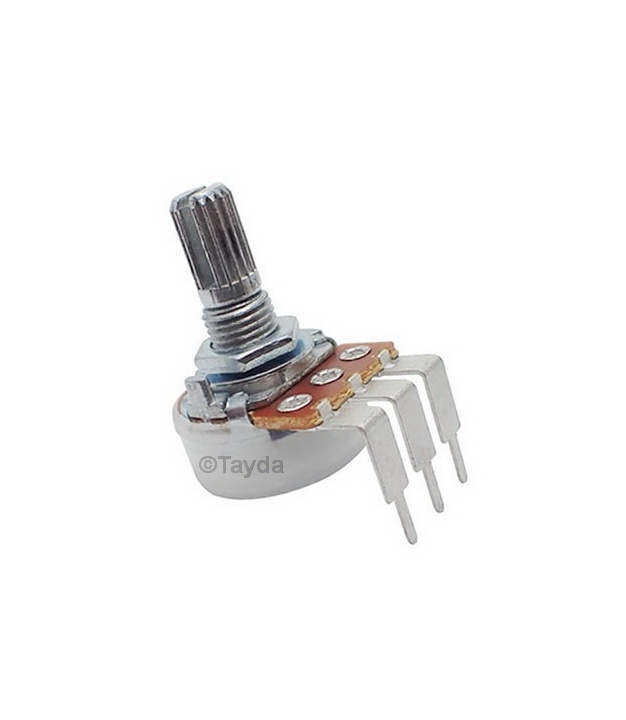

1M OHM Linear Taper Potentiometer Spline Shaft PCB Mount

Available Qty: 1451

SKU: A-1184

ALPHA

ALPHA 16MM

B1M OHM LINEAR

PCB Mount

T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)

WITH DUST SEAL

$0.59

Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-41-17K-B1M
Datasheet: Click Here
RoHS: Yes
With Dust Seal

Specifications
Power: 0.125W
Resistance: 1M OHM OHMS
Type: Linear
Type B
Features
T18 Spline Shaft
PCB Mount
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items	-
SKU	A-1184
Manufacturer	ALPHA
MPN	RV16AF-41-17K-B1M
Can be used with	-
