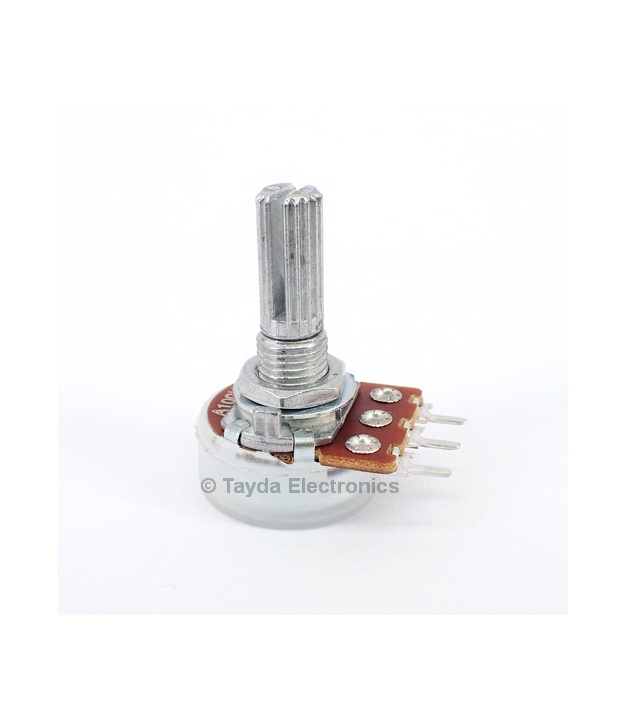

100K OHM Linear Taper Potentiometer PCB Mount Knurled Shaft Dia: 6mm Total Shaft Length:20 mm
  • 100K OHM Linear Taper Potentiometer PCB Mount Knurled Shaft Dia: 6mm Total Shaft Length:20 mm

100K OHM Linear Taper Potentiometer PCB Mount Knurled Shaft Dia: 6mm Total Shaft Length:20 mm

Be the first to review this product

$0.59

Qty Available: 96042

In stock

Quick Overview

ALPHA - Get It Fast - Same Day Shipping

Details

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-20-20K-B100K-EV
With Dust Seal
PCB Mount
Datasheet: Click Here


Specifications
Power:
1/8W(0.125W)
Resistance: 100K OHM OHMS , Tolerance: ±20%
Maximum Working Voltage: 150VAC
Type: Linear
Type B
Features

PC Mount
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length:11.5mm
Length of thread : 6.5mm
Total Shaft Length(L):20 mm
Mounting Hole: 7mm
Base Diameter: 16.5mm
Total Rotation Angle: 300 ± 5°

Additional Information

Manufacturer ALPHA
MPN RV16AF-20-20K-B100K-EV
SKU A-4203
